+91-97277 26697
| Business Price: | View Latest Price ₹8424.00 + GST USD $97, EUR €90 |
| Final Price: | ₹9940.00 (incl. GST) +Delivery |
| Stock Availability: | In Stock |
Product Specification

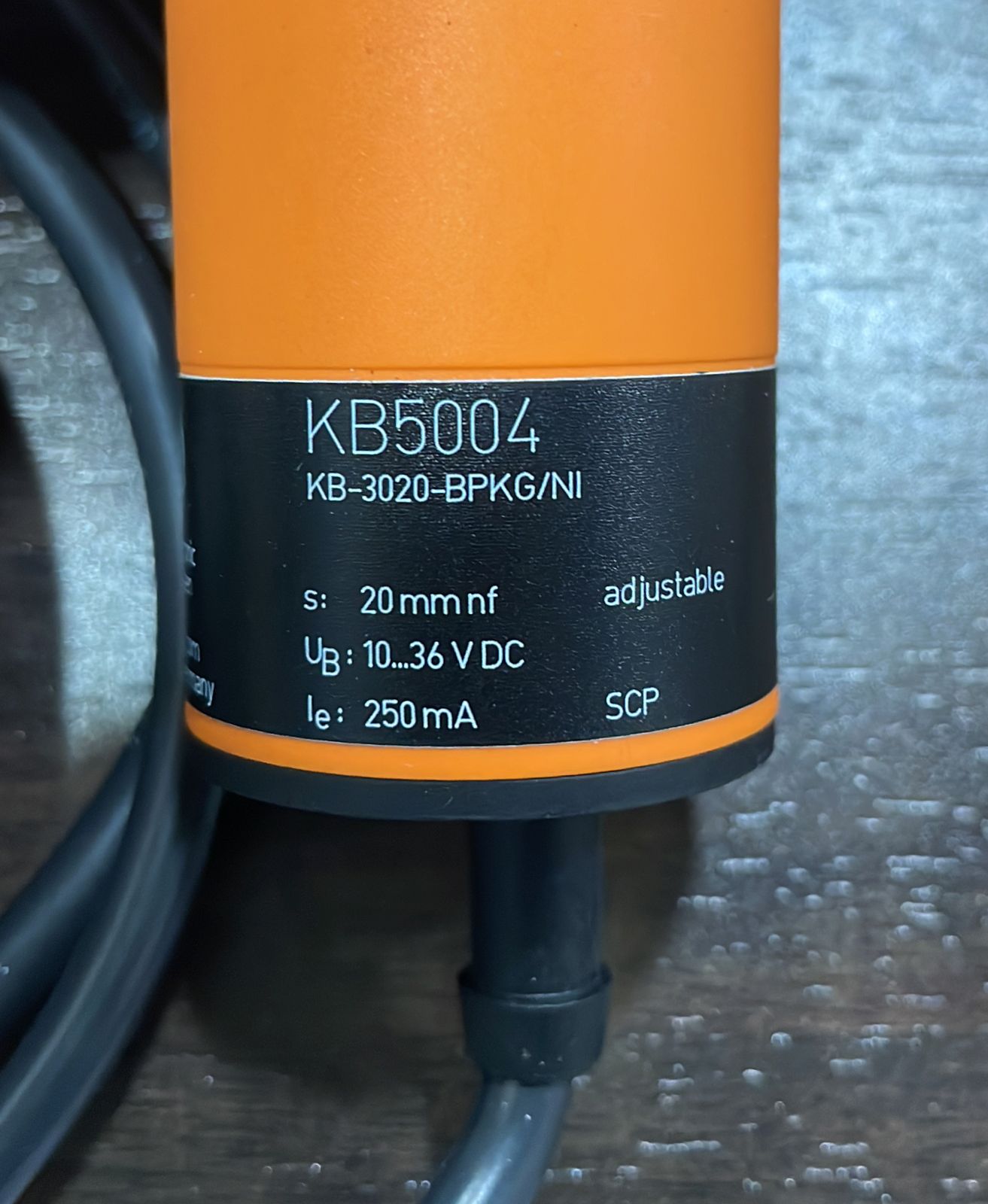

| ITEM CODE | 1382.KB5004 (KB-3020-BPKG/NI) |
|---|---|
| ITEM NAME | Techno CNC ADHESIVE LEVEL SENSOR KB5004, KB5004 KB-3020-BPKG/NI, Captive Sensor, IFM Efector KB5004 |
| Dimensions [mm] | Ø 34 / L = 81 |
| Weight | 0.250 KG |
| Materials | PBT |
| FINISH | SPECIAL CORROSION COATING |
| BRAND | IFM |
| COO | MADE IN GERMANY |
| HSN | 84393090 |
| Electrical design | PNP |
| Output function | normally open |
| Sensing range [mm] | 3...20 |
| Housing | cylindrical |
| Operating voltage [V] | 10...36 DC |
| Current consumption [mA] | 13; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 40 |
| Short-circuit proof | Yes |
| Overload protection | yes |
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 20 |
| Real sensing range Sr [mm] | 20 ± 10 % |
| Operating distance [mm] | 0...16.2 |
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
| Hysteresis [% of Sr] | 1...15 |
| Switch point drift [% of Sr] | -15...15 |
| Ambient temperature [°C] | -25...70 |
| Protection | IP 65 |
| Increased immunity | yes; (increased immunity to conducted radio frequency interference) |
| EMC | EN 60947-5-2 |
| MTTF [years] | 778 |
| Mounting | non-flush mountable |
| Display switching status | 1 x LED, yellow Light |
| Category | Printing & Converting Solutions, specifically spare parts for laminating machines |
Product Description

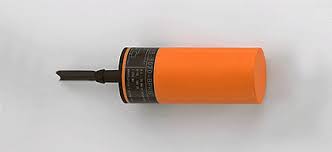

TECHNO CNC ADHESIVE LEVEL SENSOR KB5004 is a high-performance capacitive sensor designed for accurate adhesive level detection in laminating and converting machines.
This model — IFM Efector KB5004 (KB-3020-BPKG/NI) — delivers precision, durability, and enhanced signal stability under challenging industrial environments.
Manufactured from PBT with a special corrosion coating, the sensor provides superior resistance to solvents, heat, and adhesives, ensuring reliable operation in solvent-less lamination applications.
The unit features adjustable sensing range, PNP output, and enhanced RF immunity, making it ideal for industrial automation, adhesive level monitoring, and process control systems.
Backed by the precision engineering of TECHNO CNC and IFM, this sensor ensures long service life, consistent performance, and easy integration into existing laminating systems.
Key Features
Advanced Adhesive Level Detection for solvent-less laminating machines
IFM Efector OEM Quality – Proven German engineering excellence
Special Corrosion-Resistant Coating for harsh adhesive environments
Adjustable Sensing Range (3–20 mm) for flexible process requirements
High Signal Immunity against electromagnetic and RF interference
IP65 Rated for dust and moisture protection
Non-flush Cylindrical Design ensures easy installation
Includes Mounting Hardware & 2m Cable
Long MTTF (778 years) ensuring industrial-grade reliability
Ready for Immediate Dispatch Worldwide
For more details, visit: www.technocnc.in
Additional Information
| USES | 1382.KB5004 ADHESIVE LEVEL SENSOR SPARE PARTS FOR LAMINATING MACHINE |
|---|---|
| Pack quantity | 1 pcs |
| Package Dimension and Weight: | Box Size 21 X 18 X 9 CM, WT 0.350 Kg |
| Supply Delivery method | We supply the product immediately against payment. |
| Est. Shipping Time: | Immediate dispatch upon payment; overseas delivery within 72 Hours |
| Free delivery | Free delivery at your Doorstep |
| Products Ex-Stock | Products Ex-Stock |
| Dispatch | Dispatch once Payment is received |

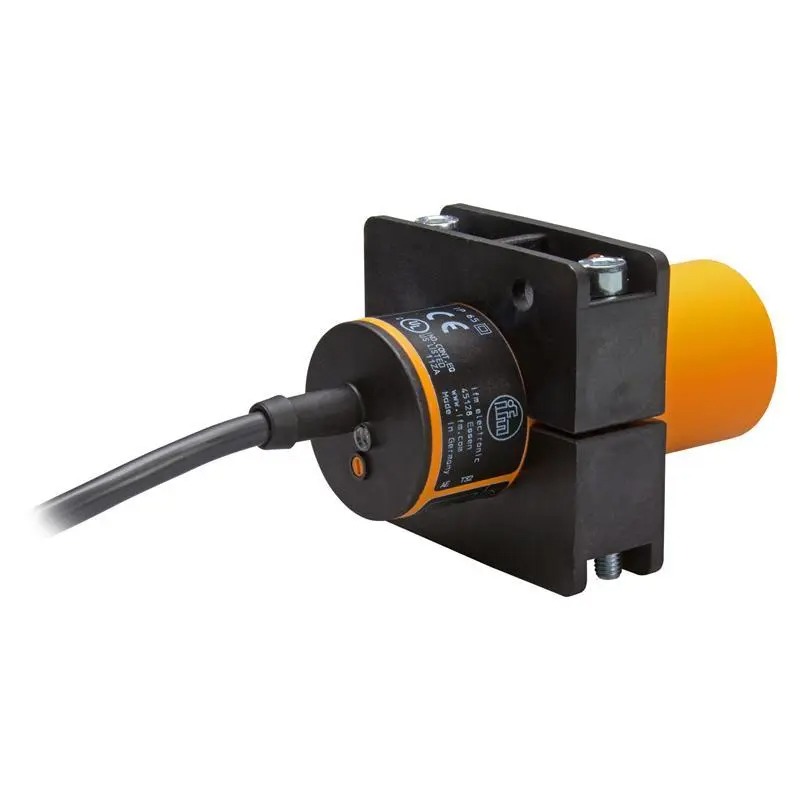

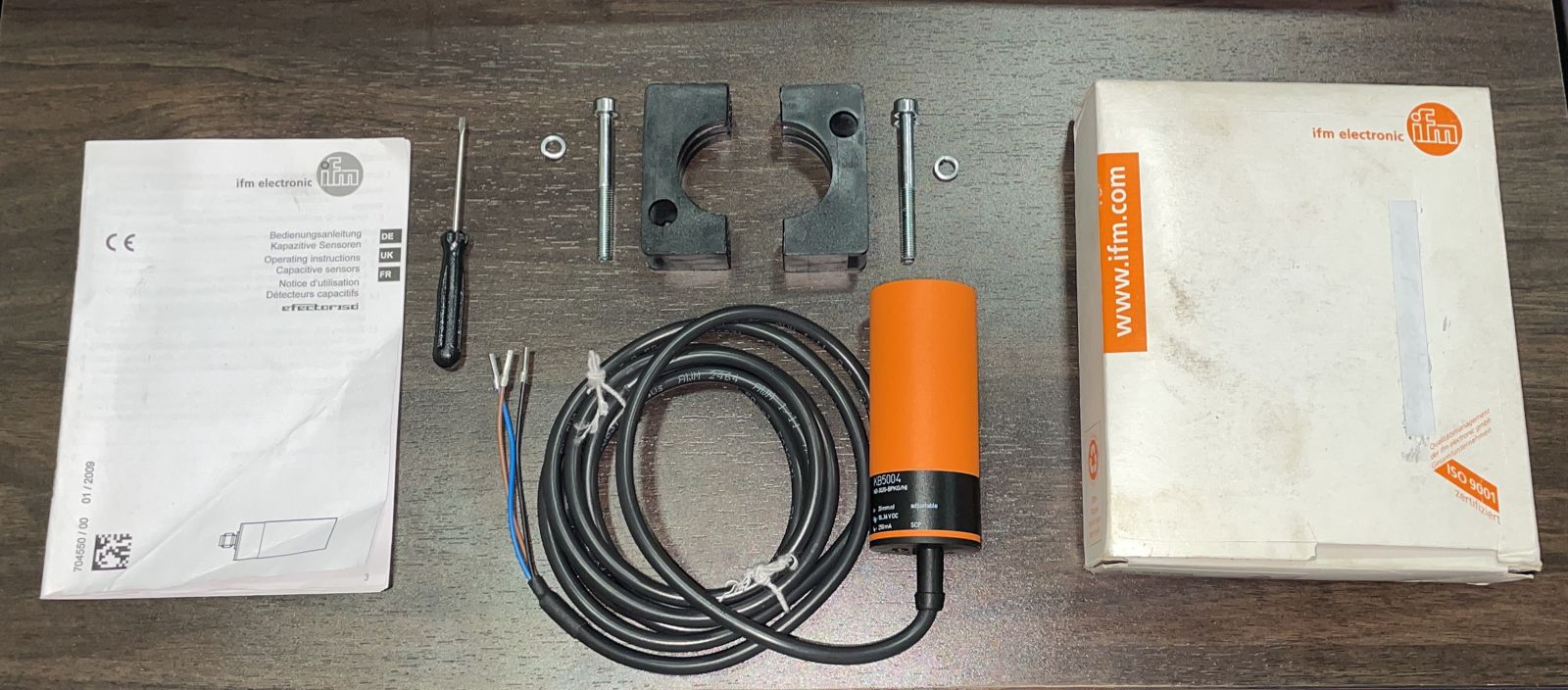

| Accessories Items supplied | Mounting clamps: 2, cylinder screws: 2, spring discs: 2 |
| Connection | Cable: 2 m, PVC; 3 x 0.5 mm² |
| YPS | IQ |
| UPDATE | 04/10/2025 J |
