| ITEM CODE | 1718.0002 |
|---|---|
| ITEM NAME | PTFE TEFLON DAM 90 x 100 x 15 MM WITH R100 PROFILE |
| DIMENSIONS in mm LxWxH | 90 x 100 x 15, R100 Profile, R8 Typ. |
| MOUNTING HOLES | 2 x Dia 6.6 mm Thru, 55 mm Pitch |
| CHAMFER | 5 x 45 Deg |
| WEIGHT (APPROXIMATE) | NWT 0.060 KG |
| MATERIAL | PTFE (TEFLON) |
| FINISH | SMOOTH CNC MACHINED |
| COO | BHARAT (IN) |
| BRAND | TECHNO |

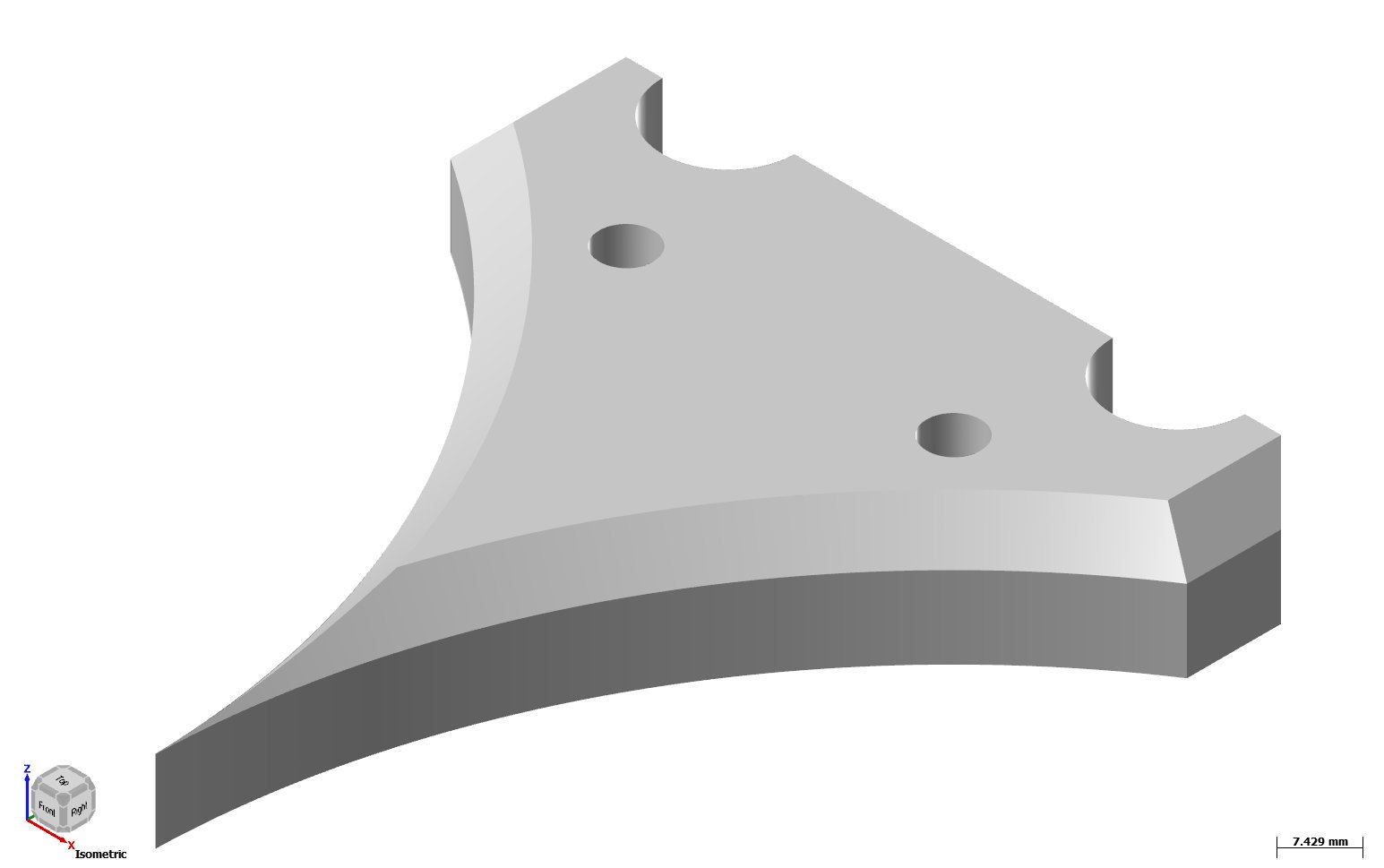

TECHNO CNC presents the PTFE Teflon Dam 90 x 100 x 15 mm with R100 Profile (Item Code 1718.0002), a precision CNC machined PTFE sealing component for laminating and coating machines.
The dam has a pointed V shape with two R100 curved faces that sit against the rollers and hold the adhesive within the coating width. It is mounted with 2 holes of Dia 6.6 mm at 55 mm pitch, with top locating notches, R8 corner radii and a 5 x 45 Deg chamfer.
Made from high-grade virgin PTFE (Teflon), it offers non-stick, heat-resistant and low-friction performance with long life and clean adhesive edges.
Need a different size or profile? Send us your drawing or sample on info@technocnc.in for a quick quote.
| Application | Solventless / Solvent Based Laminating & Coating Machines - Adhesive End Dam between Rollers |
|---|---|
| MOQ | 2 NOS |
| AVAILABILITY | Made to Order - Ready Drawing |
| Customization | Size, Profile & Material (PTFE / UHMWPE) as per Your Drawing or Sample |
| Standard Shipping for India | 1 - 3 business days after dispatch |
| Standard Shipping for Worldwide | 4 - 5 business days after dispatch |
| Shipping service | Fast Global Delivery with Secure Logistics |
| Manufacturer | Genuine TECHNO, Ahmedabad, India |
| UPDATE | 26/10/2026 |
