| Brand | TECHNO |
|---|---|
| Type | Suction (inlet) filter for ring blower |
| Thread Size | 1", 1 1/4", 1 1/2", 2", 2 1/2", 4" |
| Filtration | 100 mesh |
| Flow | 110 to 1000 L/min depending on size |
| Weight | 0.18 to 2.45 kg depending on size |
Threaded suction filter for the inlet of ring blowers and side channel blowers. Six sizes from 1" to 4", 100 mesh, 110 to 1000 L/min.
A suction filter stops dust, paper fluff and trim from entering the blower, which protects the impeller and keeps air flow steady. The filter screws directly onto the blower inlet thread and can be removed for cleaning.
| Model | Thread (PT) | D (mm) | L (mm) | H (mm) | B (mm) | Mesh | Flow (L/min) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| TSF-08 | 1" | 65 | 158 | 145 | 42 | 100 | 110 | 0.18 |
| TSF-10 | 1 1/4" | 65 | 178 | 164 | 50 | 100 | 180 | 0.2 |
| TSF-12 | 1 1/2" | 83 | 194 | 180 | 65 | 100 | 216 | 0.33 |
| TSF-16 | 2" | 102 | 210 | 200 | 75 | 100 | 364 | 0.48 |
| TSF-20 | 2 1/2" | 158 | 274 | 252 | 97 | 100 | 750 | 1.23 |
| TSF-32 | 4" | 208 | 379 | 356 | 142 | 100 | 1000 | 2.45 |

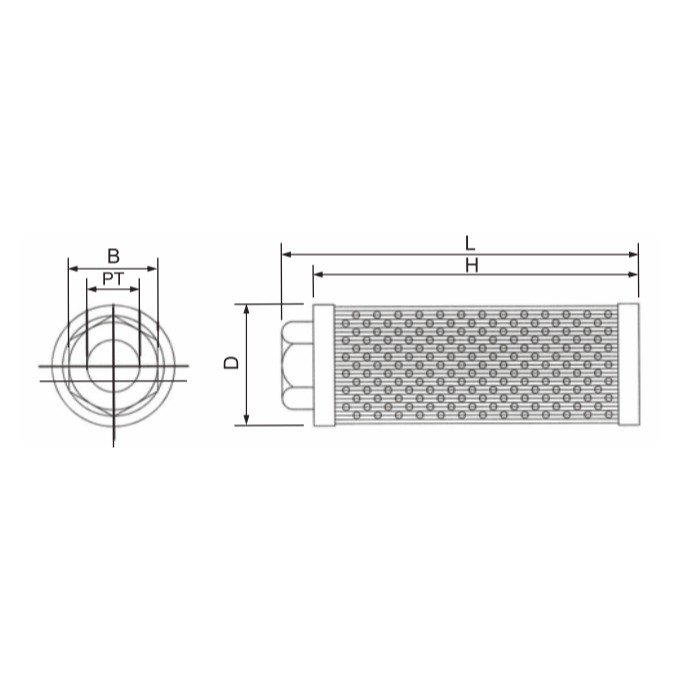

Price on request. Contact us with the ring blower model or the thread size you need. See the second photo for the D, L, H and B dimensions.
| Fits | Ring blower / side channel blower inlet |
|---|---|
| Source Code | S0001 |
