| ITEM CODE | S0002.ALS-200-10V |
|---|---|
| ITEM NAME | Fork Edge Guide Sensor 0-10V Analog with M12 Connector Cable (Set) |
| MATERIAL | ABS (Body) |
| BRAND | TECHNO |
| COO | India |
| SENSOR TYPE | Ultrasonic Fork Sensor (Edge Guide Sensor) |
| OUTPUT | Analog 0–10 V DC |
| OPERATING VOLTAGE | 10–30 V DC |
| CONNECTION | M12 Connector |
| MODEL | ALS-200 (Analog 0–10 V DC) |
| SET INCLUDES | 1 × Fork Sensor + 1 × M12 Connector Cable, 3 m |
| CONNECTOR CABLE | M12 Straight Connector, 3 Core, 3 m Length, Open Wire End |
| Wire Colour | +Brown | Black O/P | -Blue |
| DETECTS | Transparent & printed film, paper, foil, labels, textiles, non-woven |

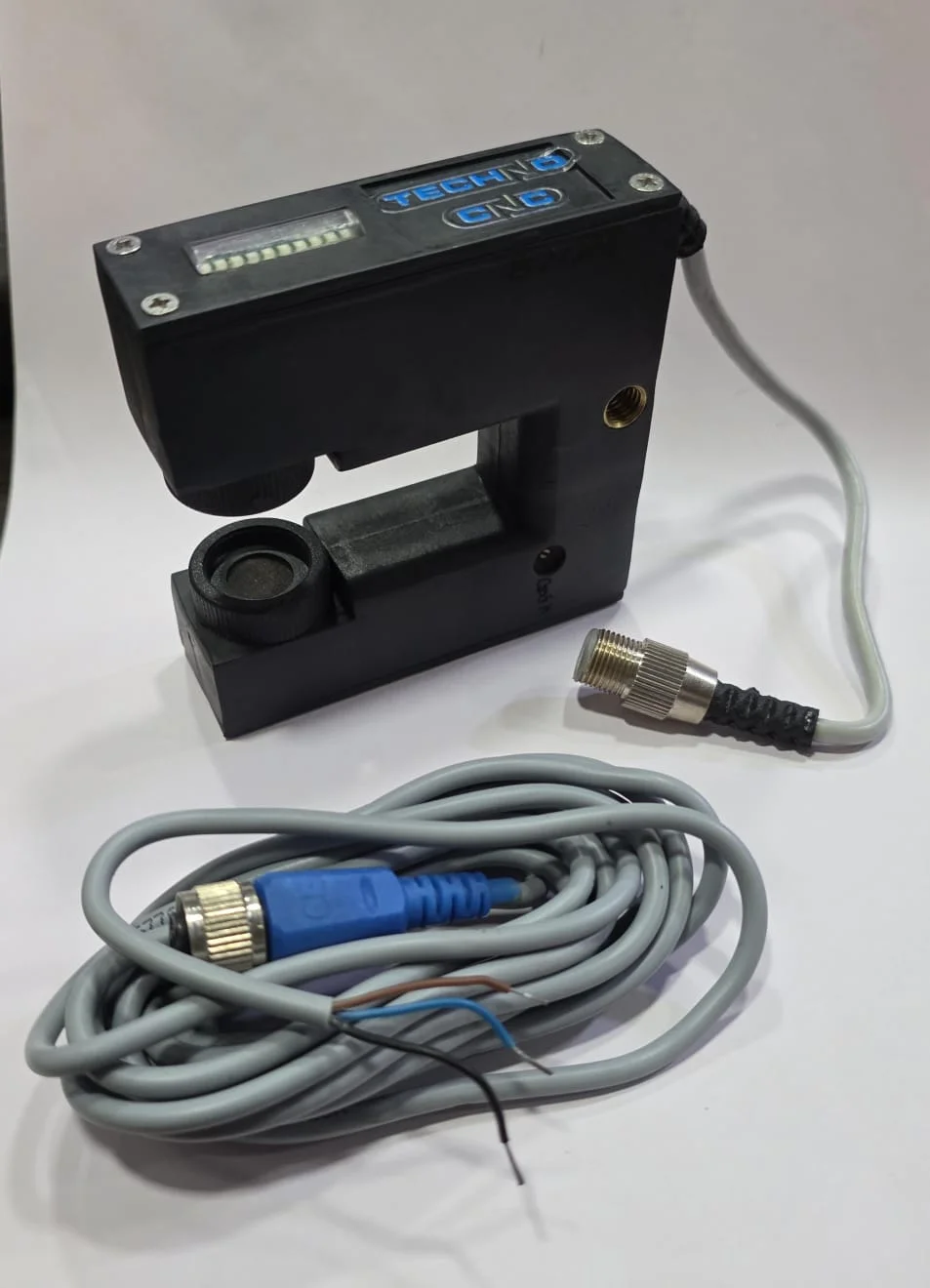

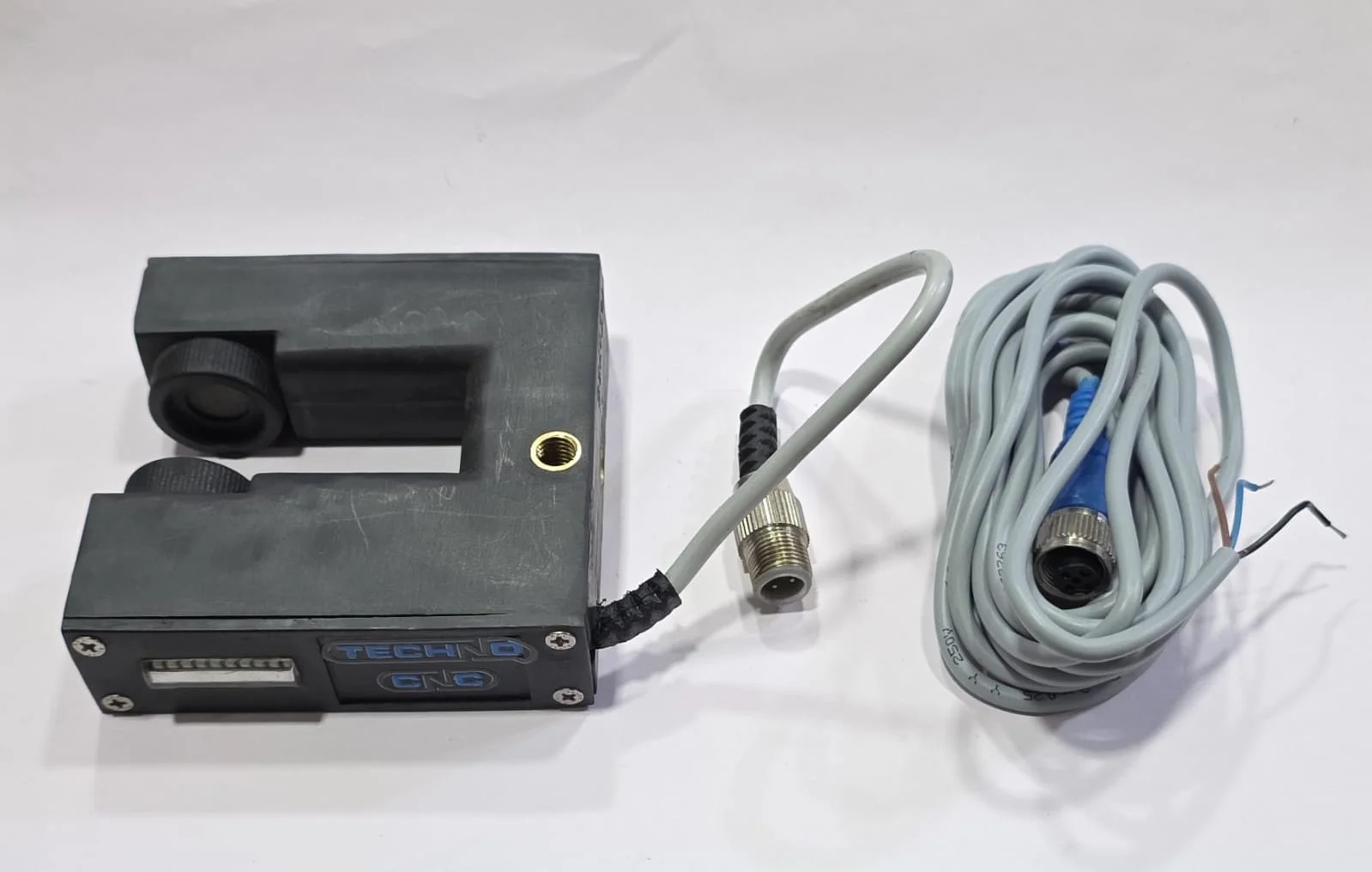

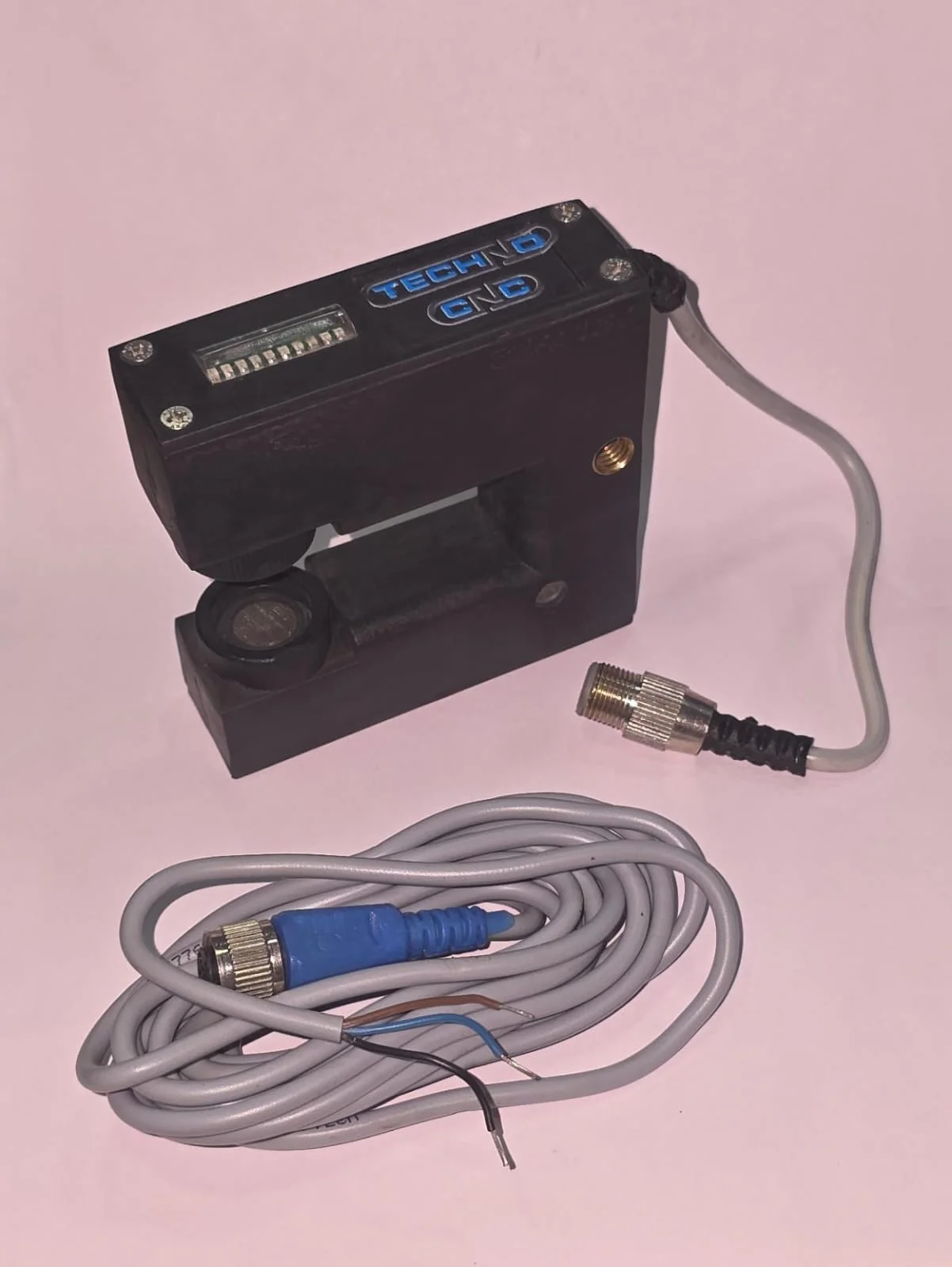

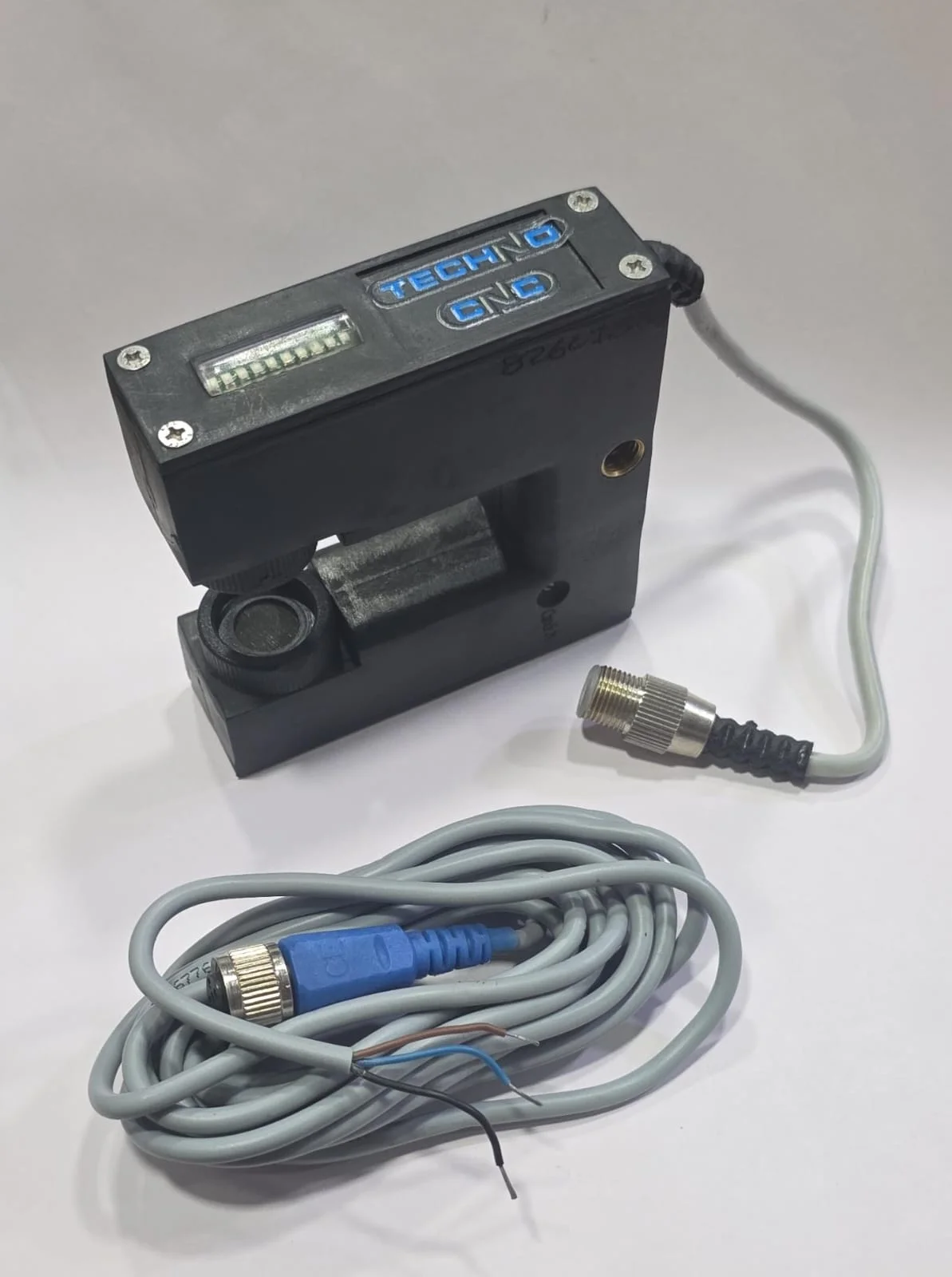

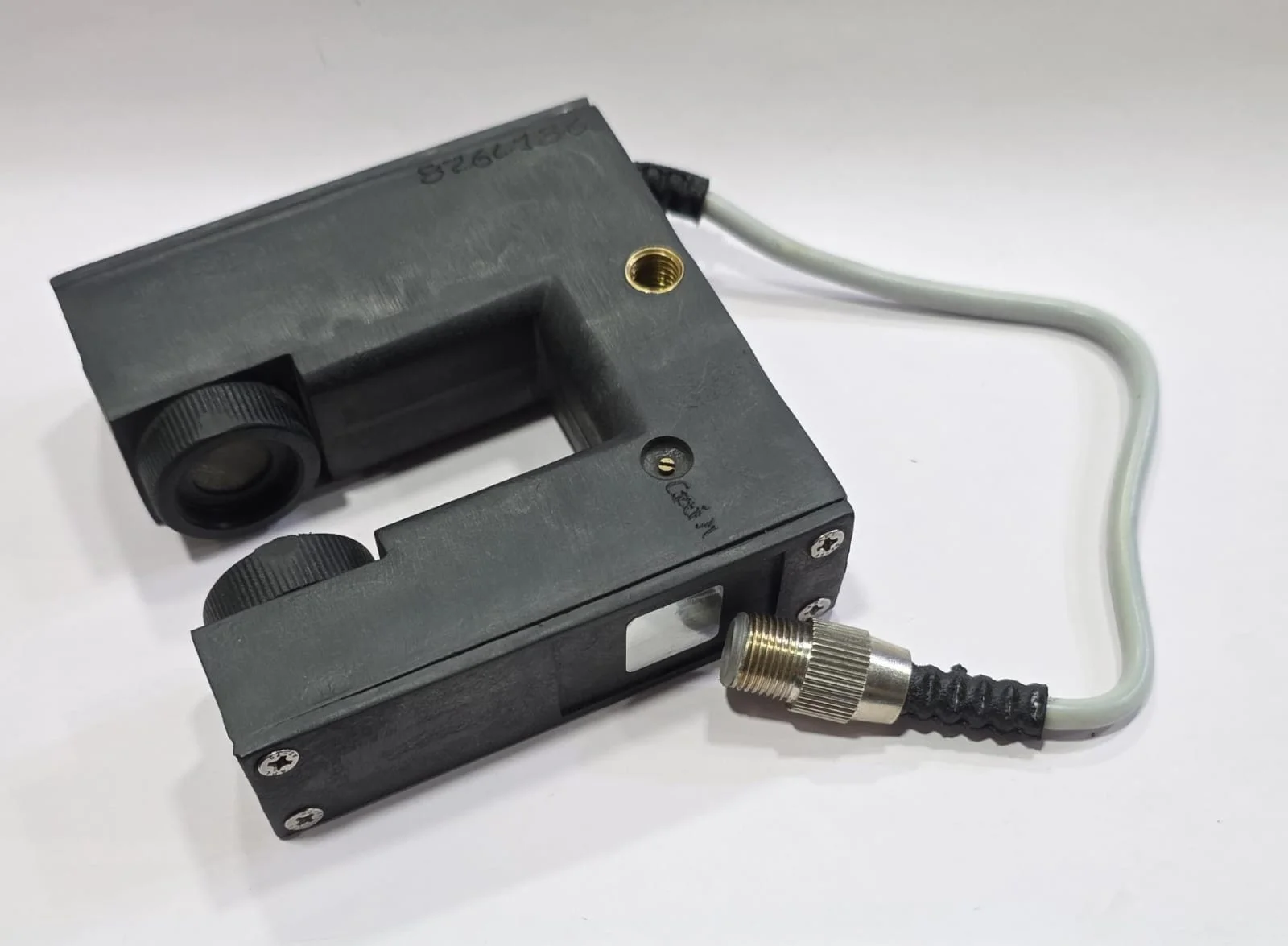

TECHNO Fork Edge Guide Sensor with M12 Connector Cable – ALS-200 (Analog 0–10 V DC)
Ultrasonic fork type edge guide sensor for precise non-contact web edge detection and stable web guiding on printing, laminating, slitting, coating and converting machines. Supplied as a ready-to-fit set with a 3 m M12 connector cable.
Also available separately: M12 Connector Cable, 3 m – as a spare / replacement cable for fork sensors.
| COMPATIBLE WITH | Web Guiding / Edge Guide Controllers. ALS-200 0-10V suits BST type sensor systems |
|---|---|
| MOQ | 1 Pc |
| PACKAGE | Set price: 1 × Fork Sensor + 1 × M12 Connector Cable (3 m) |
| REF | EGSQ |
