| ITEM CODE | 755.MC06-24S |
|---|---|

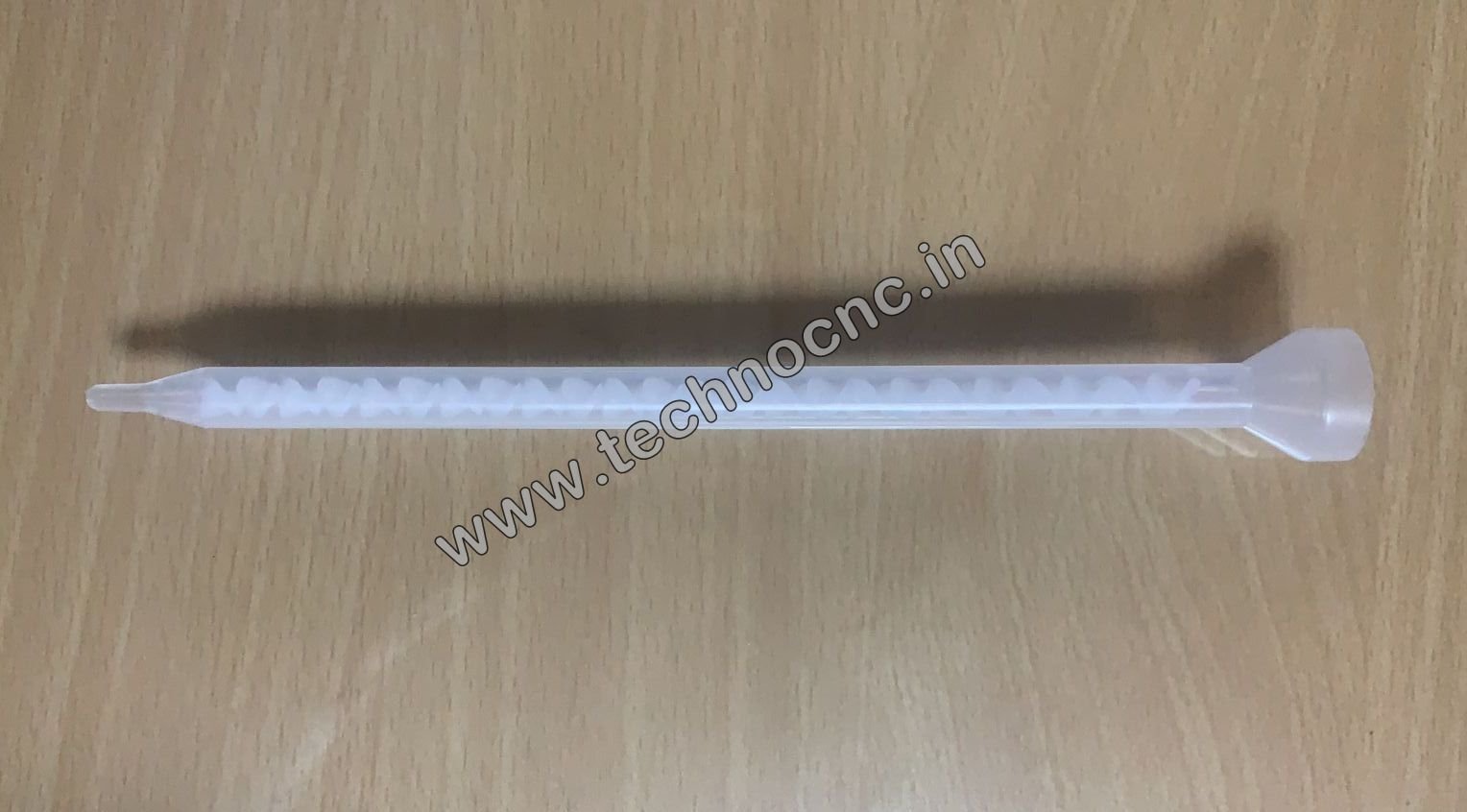

| ITEM NAME | STATIC MIXER MC 06-24S WHITE COLOR |
| DIMENSIONS | ID Ø6.4 MM X OD Ø9.8 MM X L186 MM |
| NOZZLE | Ø1.8 MM |
| MATERIAL | Outer Housing Polypropylene (PP), ELEMENTS Polyacetal (POM) and Stepped Tip |
| FINISH | STD |
| BRAND | Genuine TECHNO & AMYUR Exceed Your Vision |
| COO | MADE IN BHARAT (IN) |
| NUMBER OF ELEMENTS | 24 |
| INSIDE DIA I.D. | Ø 6.4 MM |
| OUTSIDE DIA O.D. | Ø 9.8 MM |
| LENGTH L | 186 MM |
| OUTLET NOZZLE DIA | Ø 1.8 MM |
| MAX OPERATING PRESSURE | 30 |
| MAX OPERATING PRESSURE (BAR) | 30 |
The Static Mixer MC 06-24S White Color is a precision-engineered disposable static mixing nozzle developed for consistent and efficient mixing of multi-component adhesives in printing and converting solutions. Manufactured using a polypropylene (PP) outer housing combined with polyacetal (POM) internal mixing elements, this static mixer delivers excellent chemical resistance, dimensional accuracy, and reliable mixing performance.
With an inside diameter of 6.4 mm, 24 precision mixing elements, and a 1.8 mm stepped outlet nozzle, the MC 06-24S ensures uniform adhesive homogeneity even under continuous industrial operation. Designed to handle operating pressures up to 30 bar, it supports stable flow control, reduced material wastage, and improved bonding quality.
This static mixer is widely used in industrial adhesive dispensing systems where repeatable performance, easy replacement, and consistent output are essential.
Key Features
Disposable static mixer with 24 high-efficiency mixing elements
Polypropylene housing with POM elements for chemical resistance
Stepped tip outlet for controlled adhesive flow
Compact design with stable pressure handling up to 30 bar
Ensures uniform and repeatable adhesive mixing
Lightweight, clog-resistant, and easy to install
Suitable for continuous industrial use
| USES | Industrial Use |
|---|---|
| MOQ | 100 / 1000 / 2000 Pieces per Box |
| PACKAGE | 38 × 10 × 4.5 cm, 0.350 kg |
| AVAILABILITY | In Stock / Order to Make |
| EST. SHIP | 1–2 Days After Payment Receipt |
| PORT | Ahmedabad (Air Shipping for International) |
| FEEDBACK | Would you like to tell us about lower price or discount? Product Feedback Email us info@technocnc.in |
| UPDATE | 13/12/2025 J |
