| ITEM CODE | 608.1/2-230V-4MT-4AIR |
|---|---|

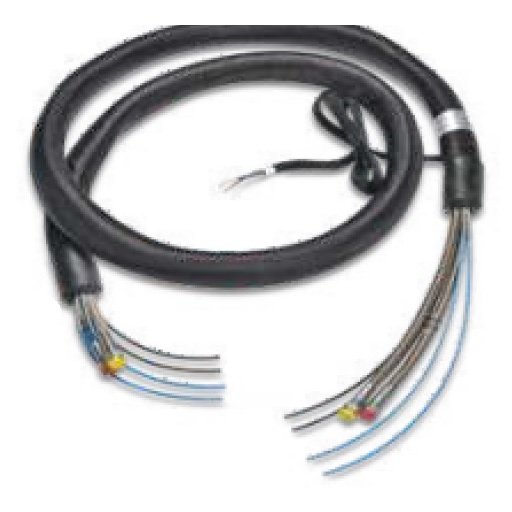

| ITEM NAME | DOUBLE HEATED MIXER HOSE 1/2 BSP 4 MTR 230V AC 500W J TYPE Temperature Sensor With 4 AIR PIPE 6MM OD HEAVY DUTY |
| DIMENSIONS | As per Final Assembly |
| ITEM WEIGHT | As per Final Assembly |
| MATERIAL | As per Industrial Standard |
| FINISH | Industrial Finish |
| BRAND | TECHNO |
| COO | MADE IN BHARAT (IN) |
| PRESSURE | 175 BAR |
| MAX TEMP | 130 C |
| HSN | 84209900 |
| HEATER | 500W |
| AIR PIPE | 6 mm AIR Pipe, 4 Pcs, Both Side Etra Long +500mm |
| TYPE | Double Heated Mixer Hose |
| CONNECTOR SIZE | 1/2 BSP |
| LENGTH | 4 meters |
| VOLTAGE | 230V AC |
| POWER | 500W |
| AIR PIPE SIZE | 6mm OD |
| NUMBER OF AIR PIPES | 4 |
| QUALITY | Heavy-Duty Industrial Grade |
| TEMPERATURE SENSOR | J Type Thermocouple (0 to 400°C) |

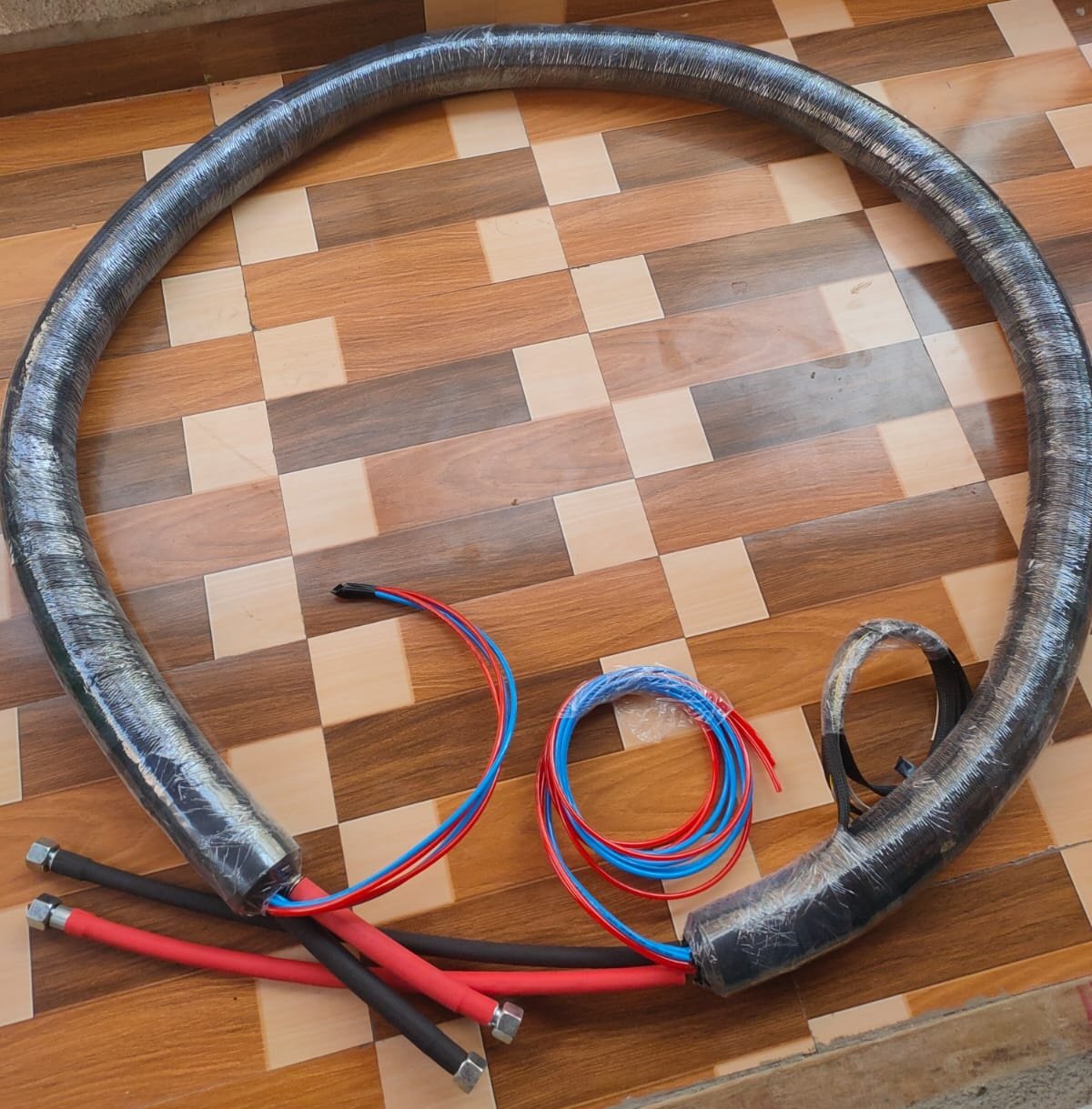

The Double Heated Mixer Hose 1/2 BSP – 4 Meter, 230V AC, 500W is a heavy-duty industrial heated hose assembly designed for precise temperature-controlled adhesive transfer in solventless laminating and mixing systems. Engineered for high-performance applications, this hose ensures consistent adhesive viscosity, uninterrupted flow, and stable operating temperature during continuous production.
Equipped with a J-Type thermocouple temperature sensor (0–400°C) and dual heating system, the hose delivers uniform heat distribution up to 130°C, even under high-pressure conditions. The assembly includes four extra-long 6mm OD air pipes (both sides +500 mm) to support pneumatic control and system integration.
Designed with a 1/2 BSP connector, rated for 175 bar pressure, and powered by 230V AC with 500W heating capacity, this mixer hose is fully compatible with NORD World Mixer systems and similar solventless lamination equipment, ensuring reliability, safety, and long service life.
Key Features
Double heated construction for uniform temperature control
Heavy-duty design suitable for continuous industrial use
1/2 BSP connectors for secure and leak-free installation
Integrated J-Type thermocouple (0–400°C) for accurate temperature monitoring
Heating capacity 500W, operating on 230V AC
Withstands pressure up to 175 bar
Maximum operating temperature 130°C
Includes 4 air pipes (6mm OD), extra-long on both ends
Ideal for solventless adhesive transfer and mixing systems
| USES | NORD World Mixer |
|---|---|
| MOQ | 1 NOS |
| PACKAGE | As per final configuration |
| AVAILABILITY | 3-4 Days After Payment Receipt with PO |
| EST. SHIP | 3–4 Days After Payment Receipt with PO |
| UPDATE | 13/12/2025 J |
| Gross Weight | 16 Kg Volumetric |
