| ITEM CODE | S0005.ACT |
|---|---|

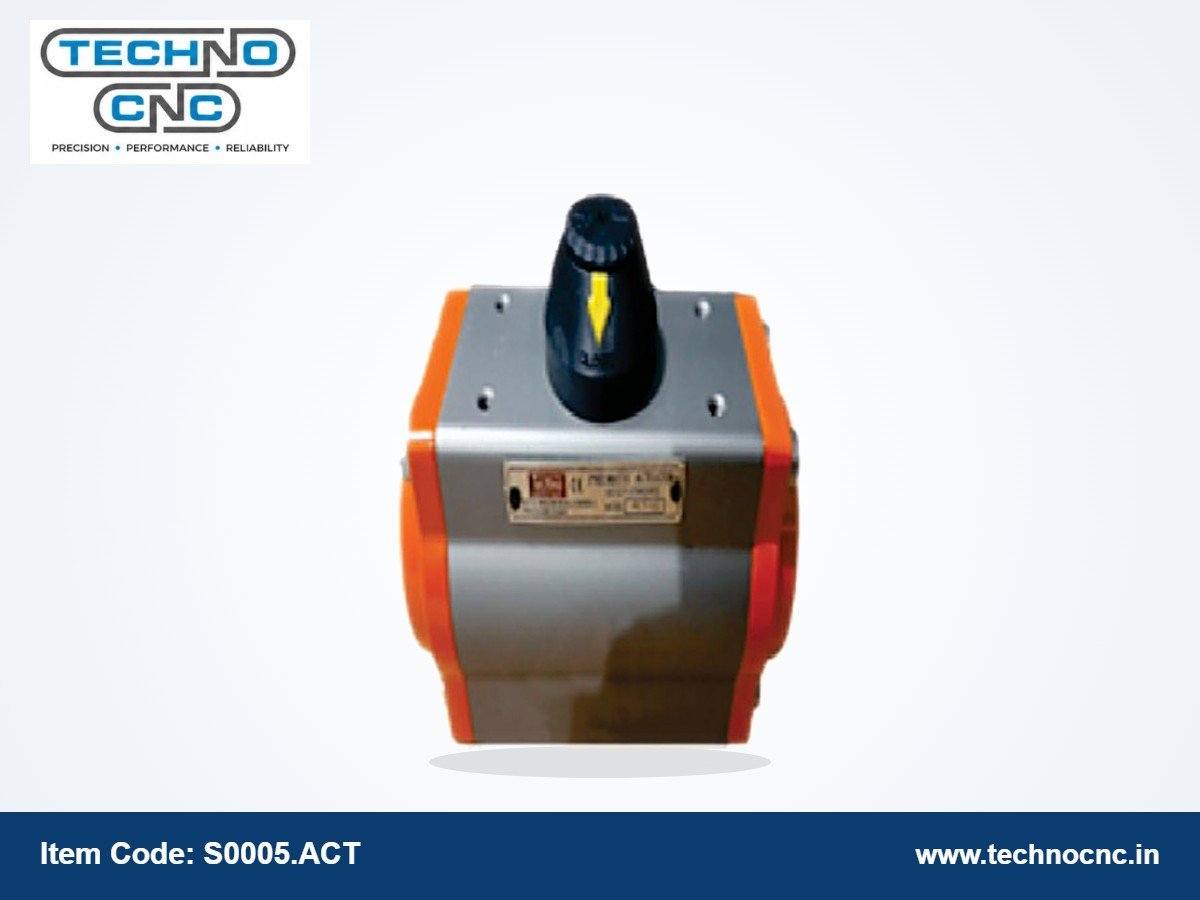

| ITEM NAME | OEM Pneumatic Rotary Actuator |
| MODELS | ACT32, ACT42, ACT52, ACT63, ACT75, ACT83, ACT92, ACT105, ACT125, ACT145, ACT160, ACT190, ACT210 |
| SIZE / RANGE | Body 32 to 210 (square 9 to 36 mm) |
| TYPE | Rack and pinion, double acting; spring return on request |
| MEDIA / PRESSURE | Filtered compressed air, 0–10 bar |
| MOUNTING | ISO 5211 / NAMUR |
| BRAND | TECHNO |
| COO | Made in BHARAT (IN) / Imported |
| HSN CODE | 8481 |
| REF | S0005 PL 01-04-2025 pg 13 |
Aluminium rack and pinion actuators for automating ball valves, butterfly valves and dampers. NAMUR face accepts direct mounted solenoid valves and limit switch boxes.
Available models / sizes: ACT32, ACT42, ACT52, ACT63, ACT75, ACT83, ACT92, ACT105, ACT125, ACT145, ACT160, ACT190, ACT210.
Size range: Body 32 to 210 (square 9 to 36 mm). Type: Rack and pinion, double acting; spring return on request.
Supplied by Techno CNC, Ahmedabad, India – for OEMs, maintenance teams and export customers. Send the model and quantity for a quick quote; other sizes and voltages on request.
| COMPATIBLE WITH | Pneumatic, hydraulic & process machines – printing, packaging, converting, textile, plastic, automation |
|---|---|
| MOQ | 1 Piece |
| PACKAGE | Individually packed |
| AVAILABILITY | Stocked on-demand / On request |
| EST. SHIP | 7–10 Working Days (India) / 10–15 Days (Export) |
