| ITEM CODE | SE-44 M266337 |
|---|---|

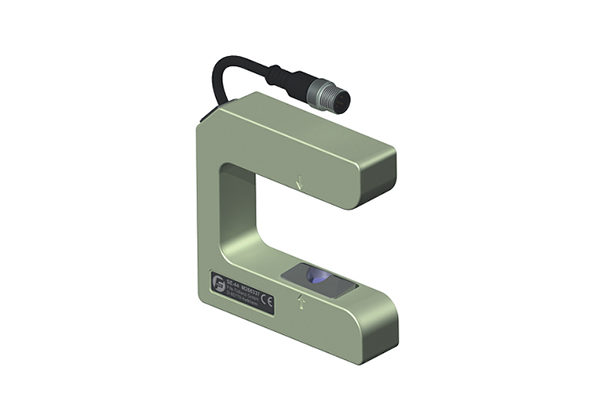

| ITEM NAME | Ultrasonic Sensor FIFE SE-44 M266337 |
| ITEM WEIGHT | 130g |
| MATERIAL | Stainless Steel |
| FINISH | Industrial Protective Finish |
| BRAND | FIFE |
| COO | MADE IN BHARAT (IN) |
| Output Type | PNP |
| Sensing Distance | 20 mm |
| Power supply: | 10 to 15V |
| Operating temperature: | 0°- 60°C |
| Protection class: | IP40 |
| Output signal: | 0 to 10mA |
| Linearity: | 10% maximum error (at 10% to 90% of signal) |
| Plane change: | 5% maximum error (at 45° angle between web and sensor) |
| Temperature drift: | 7% maximum error (at 10°C to 50°C) |
| ESD protected: | designed to IEC/EN 61000-4-2 |
The Ultrasonic Sensor FIFE SE-44 M266337 is a high-precision non-contact sensing device engineered for accurate edge detection, web alignment, and position control in advanced industrial machinery. Utilizing ultrasonic wave technology, this sensor reliably detects materials regardless of color, transparency, reflectivity, or surface texture, ensuring stable and repeatable measurements in complex production environments.
Designed for high-speed converting and processing lines, the SE-44 sensor delivers rapid response, exceptional measurement stability, and strong immunity to dust, vibration, and ambient light variations. Its rugged industrial construction supports continuous-duty operation while maintaining consistent accuracy over extended service life.
Fully compatible with FIFE web guiding systems, this sensor helps optimize material tracking, reduce waste, improve product quality, and enhance overall machine efficiency in printing, packaging, laminating, and material handling applications.
Key Features
Advanced ultrasonic non-contact sensing technology
Precise edge and position detection
Reliable performance on transparent, reflective, or opaque materials
Independent of color and surface finish
Fast response for high-speed production lines
Robust industrial-grade housing
Stable operation in dusty and harsh environments
Long operational life with minimal maintenance
| USES | FIFE Web Guiding & Control Systems |
|---|---|
| MOQ | As per Requirement |
| PACKAGE | As per Item Geometry and Quantity |
| AVAILABILITY | Ready-to-Ship or Made-to-Order |
| EST. SHIP | Fast Global Deleivry with Secure Logistics |
| PP | ZZ K Maxcess |
