| Business Price: | View Latest Price ₹5300.00 + GST NET | USD 62.00 | EUR 55.00 |
| Final Price: | ₹6254.00 (incl. GST) + Delivery |
| Stock Availability: | In Stock |
Product Specification
| ITEM CODE | G980.120 |
|---|---|

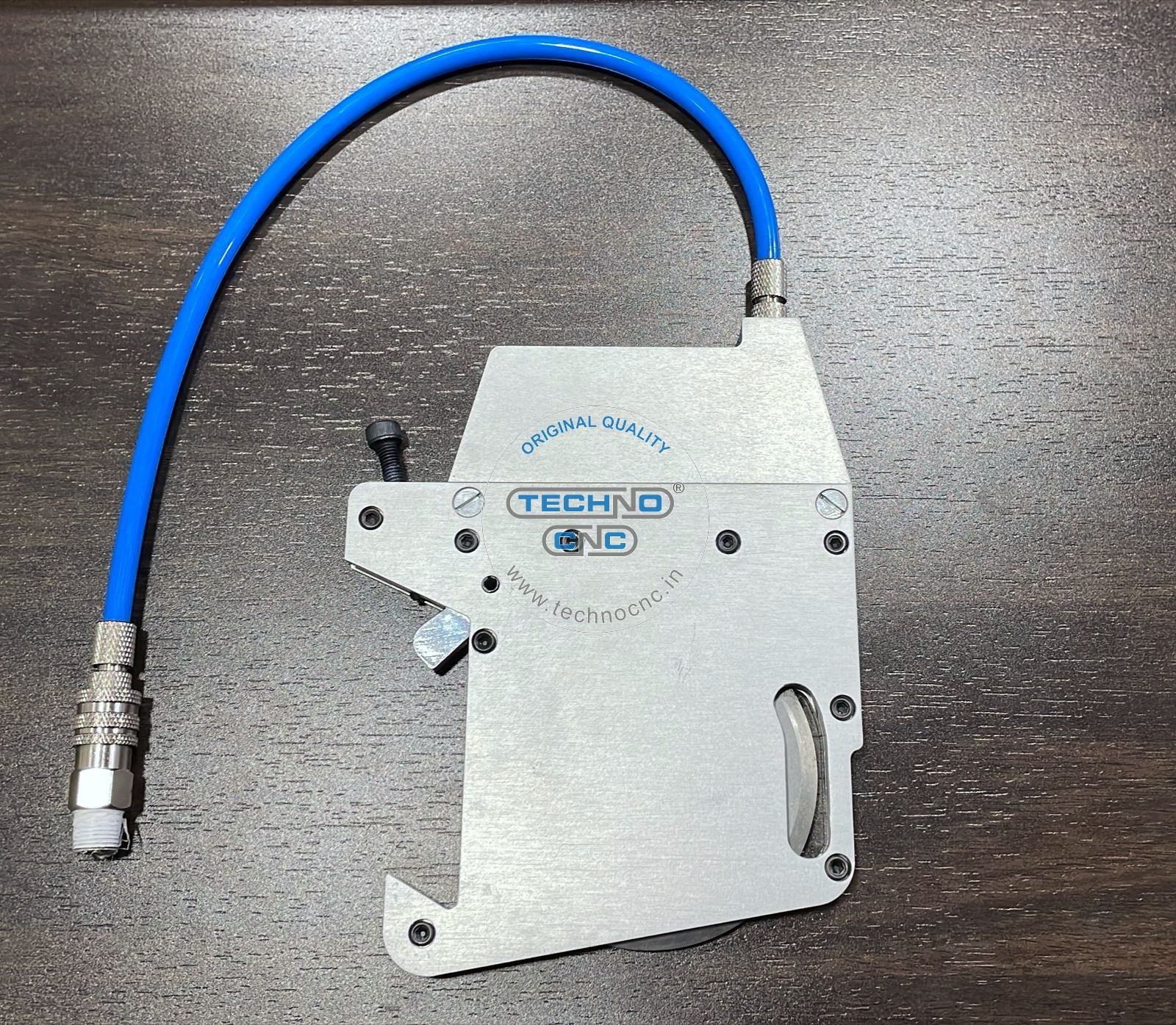

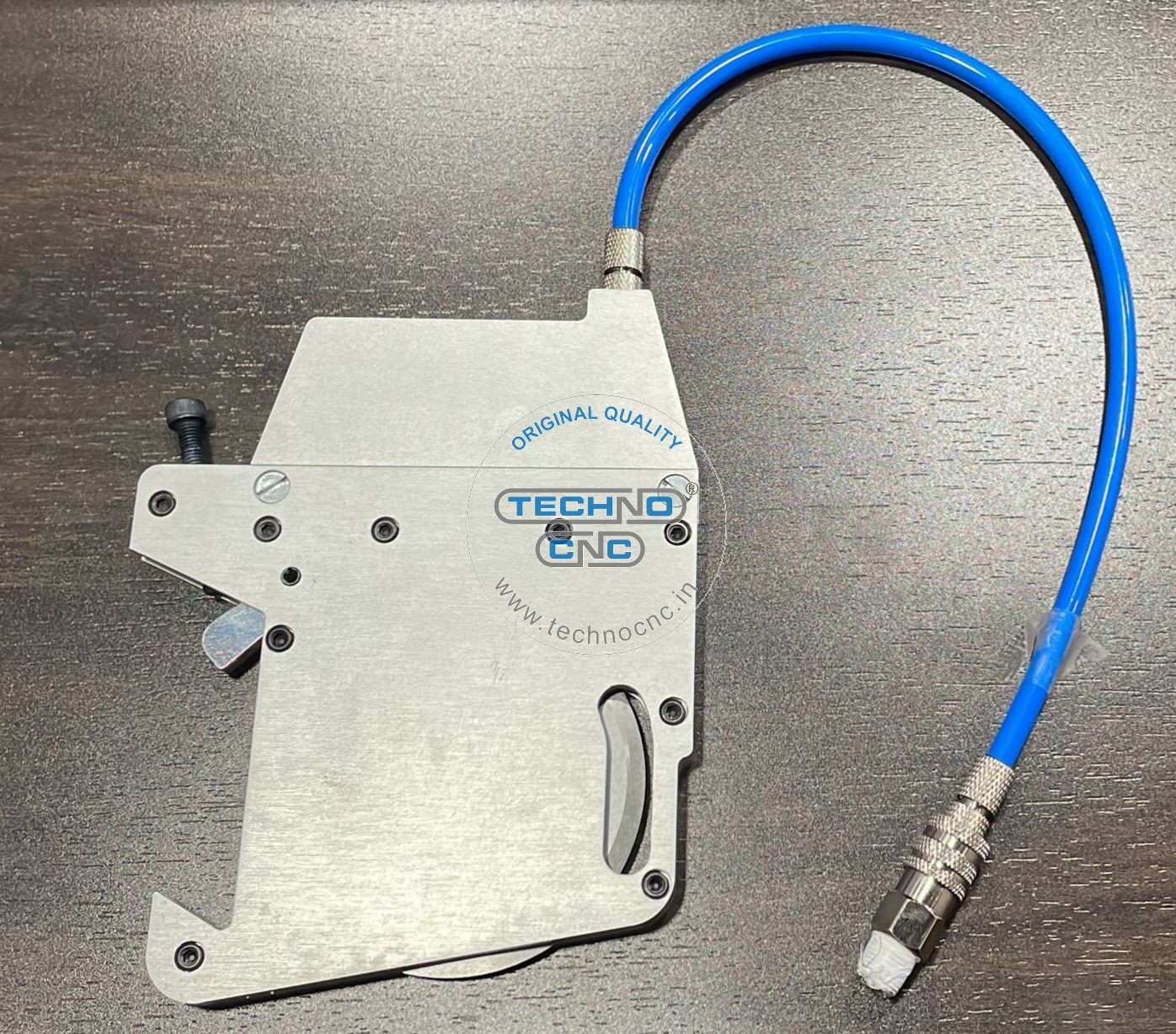

| ITEM NAME | TechnoCut Pneumatic Knife Holder, Free Scoring Knife, Airpipe, Quick Connector |
| DIMENSIONS in MM | 150 x 120 x 11 (Dowtail to Center 41.5 mm) |
| Knife Holder Material | Aluminum Alloy Solid Billet Body. Billet aluminum is used extensively in aircraft due to its strength, light weight, and corrosion resistance. |
| FINISH | Anodized Corrosion Resistance, Mirco GQ |
| BRAND | TechnoCut |
| COO | BHARAT (IN) |
| Easy Blade Replacement | Used crush cutters can be replaced in seconds, minimizing downtime. |
| Fixed Stroke Piston | Prevents accidental damage to the crush cut knife by eliminating contact with the hardened anvil. |
| Retrofitting Capability | Can be easily adapted to older machines |
| Heat and Temperature Resistance | Suitable for use in various industrial environments |
| Moisture Resistance | Ensures durability and longevity. |
| Easy Handling | Ergonomic design makes it comfortable and safe to use. |
| Operational Pressure Range | 3 - 5 Atmospheres |
| Features | Solid Easy to Install, Durable, Elegant Design, Good Viewing Angle |
| Warranty | 1 Year |
| Cutting material | Paper, Plastic film, Rubber, No-woven fabric, adhesive Tape. |

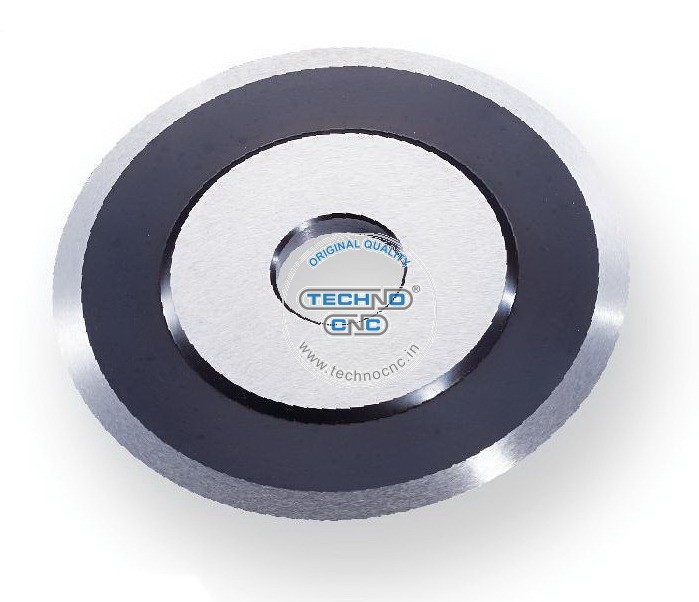

| Score Blade | OD77 x 17 x 5 mm |
| Material | SKD11(D2), HSS |
| Perforation knife pitch and Zigzag teeth pitch dimension | Custom Made |
| Slitting width | 12 mm (minimum) |
| Available stroke | 15 mm |
| Pressure range | 2~6 kg/cm2 |
| Max. slitting speed | 100 M/min |
| P | XYYQ.QQ |
| Product Weight | 0.500 kg |
Product Description

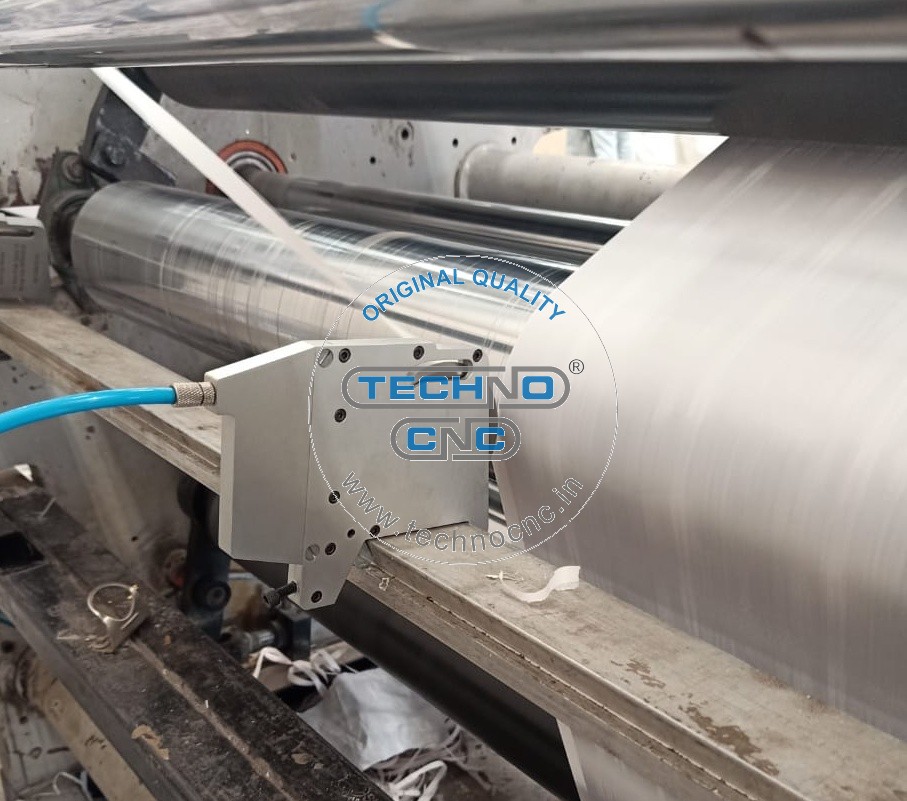

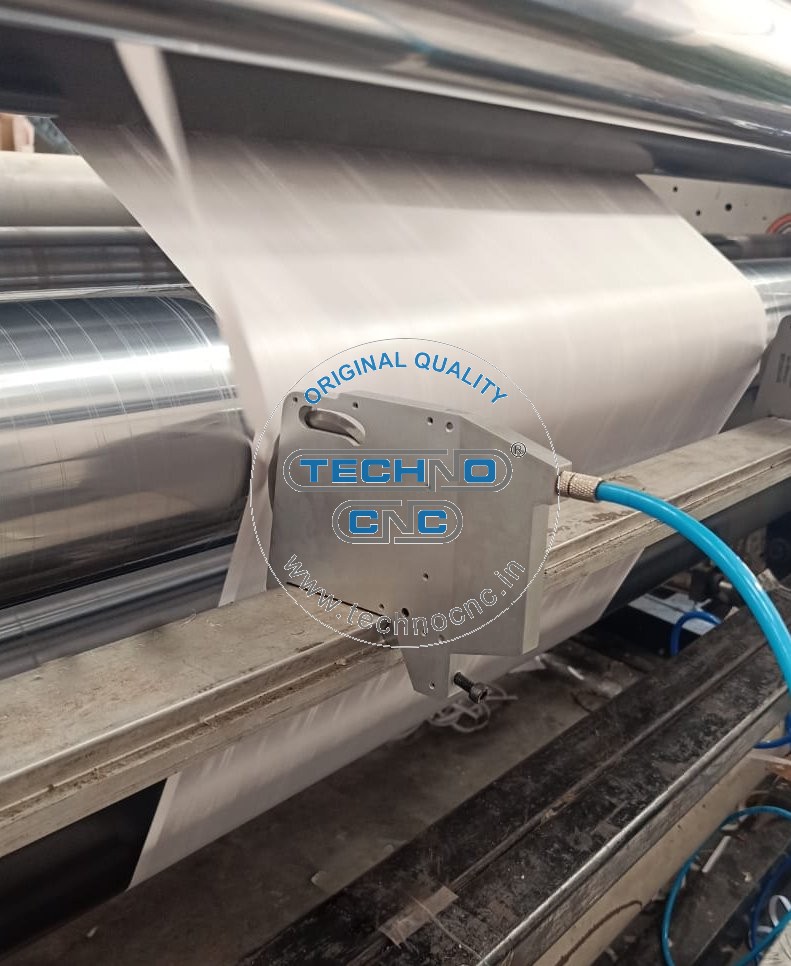

The TechnoCut Pneumatic Knife Holder is a precision-engineered industrial tool holding solution designed for high-speed automated cutting applications. Manufactured using hardened alloy steel and machined on advanced CNC platforms, this pneumatic holder ensures superior rigidity, accurate blade positioning, and consistent clamping performance under continuous production conditions.
Designed for integration with CNC cutting machines and automated knife systems, the air-actuated locking mechanism provides rapid tool engagement and release while maintaining strong grip stability during operation. The precision-ground internal bore ensures minimal runout and enhanced cutting accuracy, reducing vibration and improving overall production efficiency.
This holder is ideal for industries requiring repeatable precision such as textile manufacturing, packaging converting, foam processing, leather cutting, and industrial trimming systems.
Key Features
High-precision pneumatic clamping system
Hardened alloy steel construction for durability
Tight tolerance machining for stable blade alignment
Smooth air-actuated locking & release mechanism
Corrosion-resistant industrial finish
Suitable for high-speed automated cutting operations
Long service life under repetitive industrial cycles
Additional Information
| USES | CNC Cutting Machines, Textile Machinery, Automated Knife Systems |
|---|---|
| MOQ | 1 Assly, Custom or Bulk Orders Accepted |
| PACKAGE | As per Item Geometry and Quantity |
| AVAILABILITY | Ready-to-Ship or Made-to-Order |
| EST. SHIP | Fast Global Delivery with Secure Logistics |
| UPDATE | 04/03/2026 J |
