Schmidt Couplings NSS 10.9.12 Model

Business Price: View Latest Price ₹20000.00 + GST | USD 233.00 | EUR 196.00
Final Price: ₹23600.00 (incl. GST) + Delivery
Stock Availability: In Stock

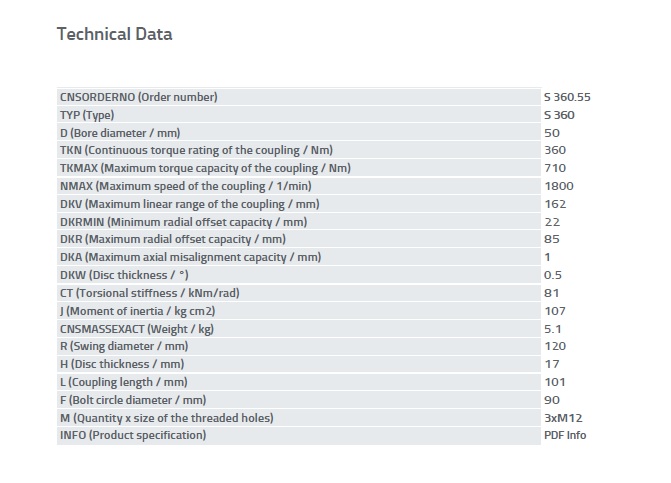

Product Specification

ITEM CODE G652.NSS10.9.12 | S360.55 | 10244
ITEM NAME Schmidt Couplings NSS 10.9.12 Model

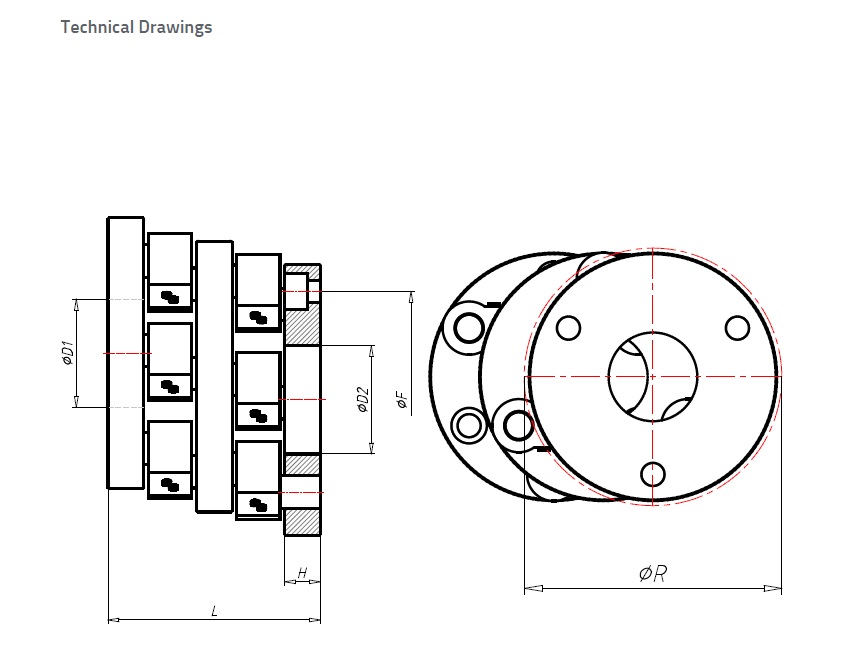

DIMENSIONS OD D120 x ID D50 x W101 x PCD 90, M12 x 3
ITEM WEIGHT Net Wt. 5.150 kg
MATERIAL S45C / USA1045 / EN8
FINISH Black Oxide Finish
BRAND TECHNO
COO BHARAT (IN)
HSN Customs Code: 84836090 | 84836080


Product Description

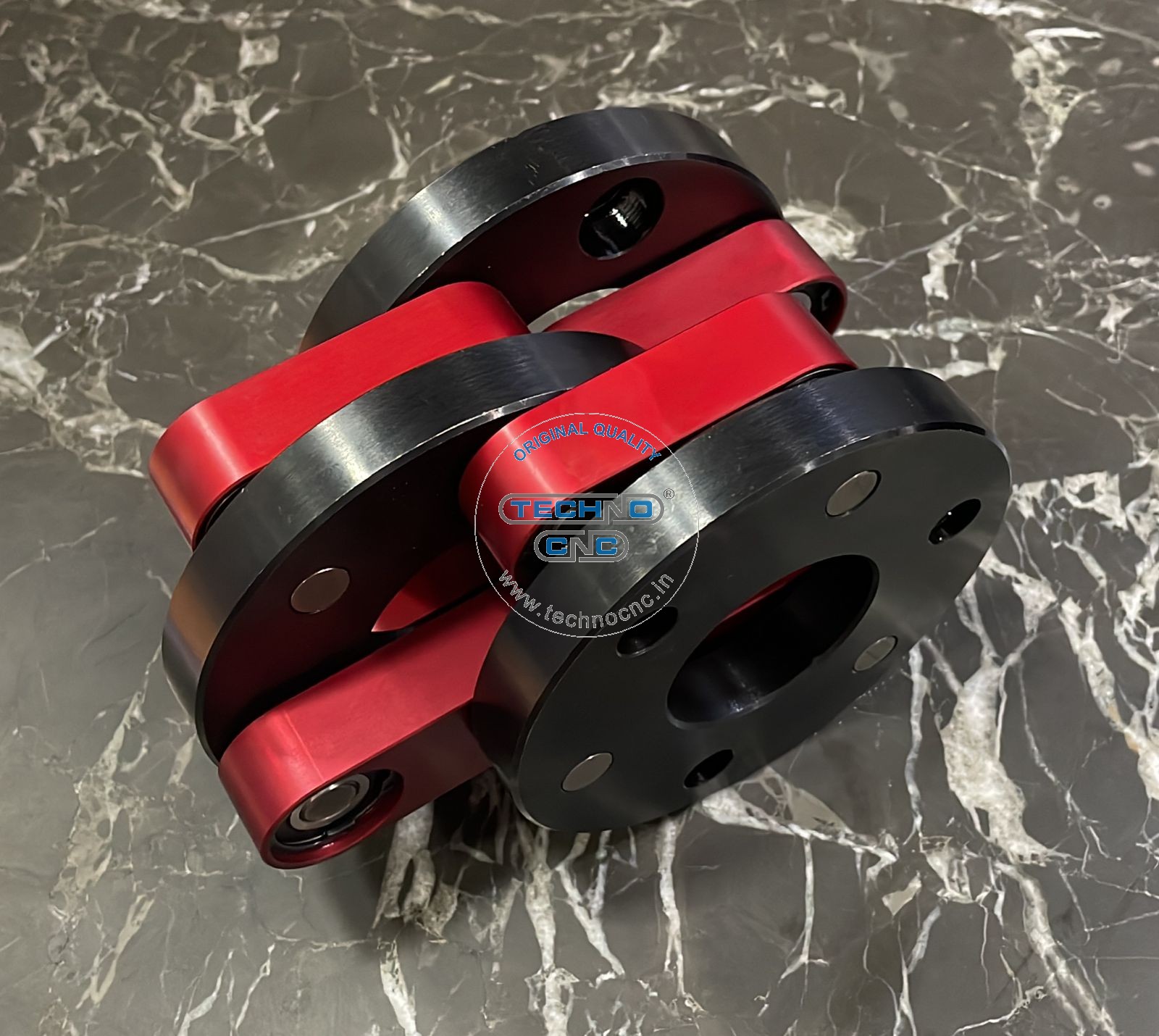

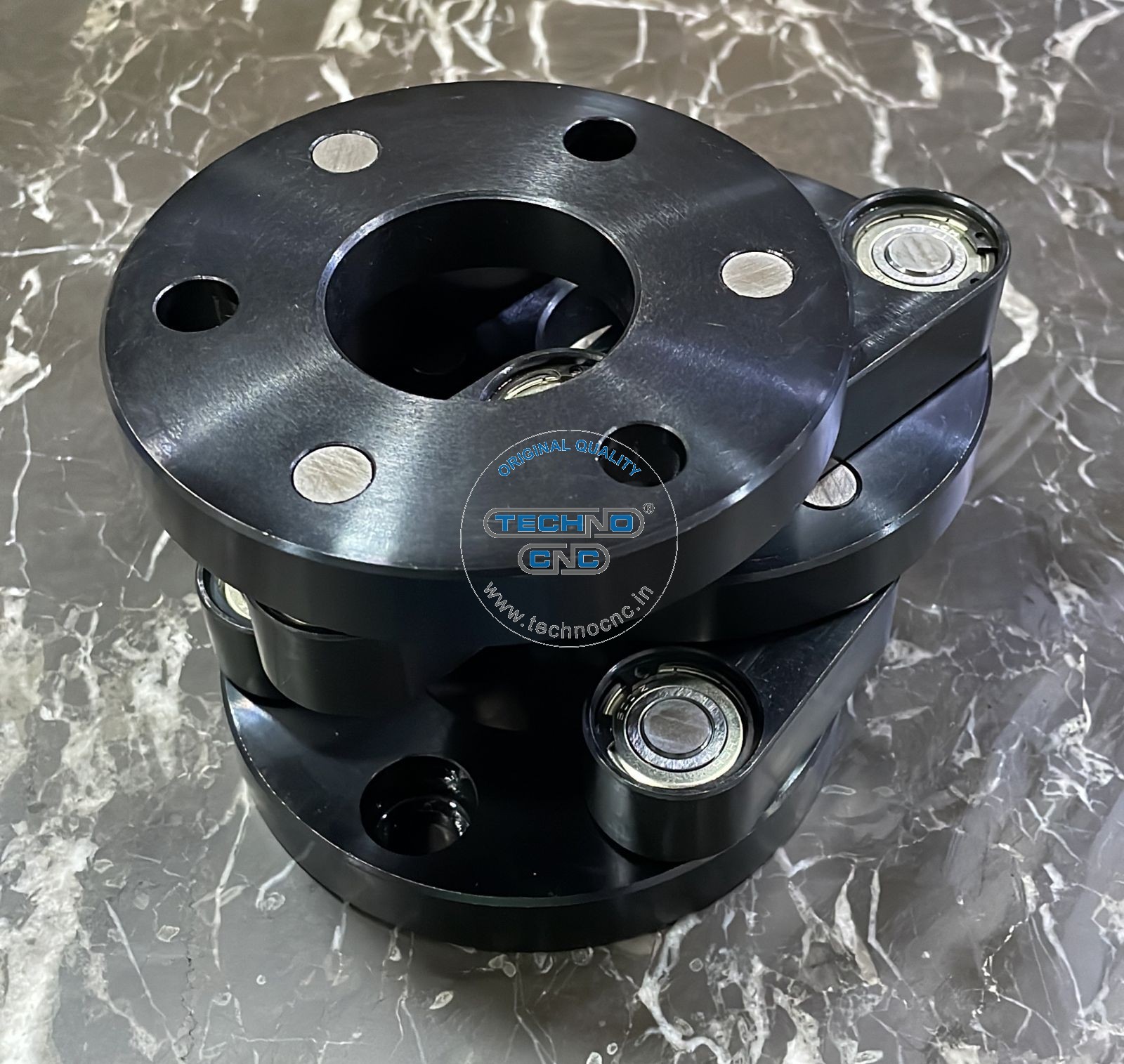

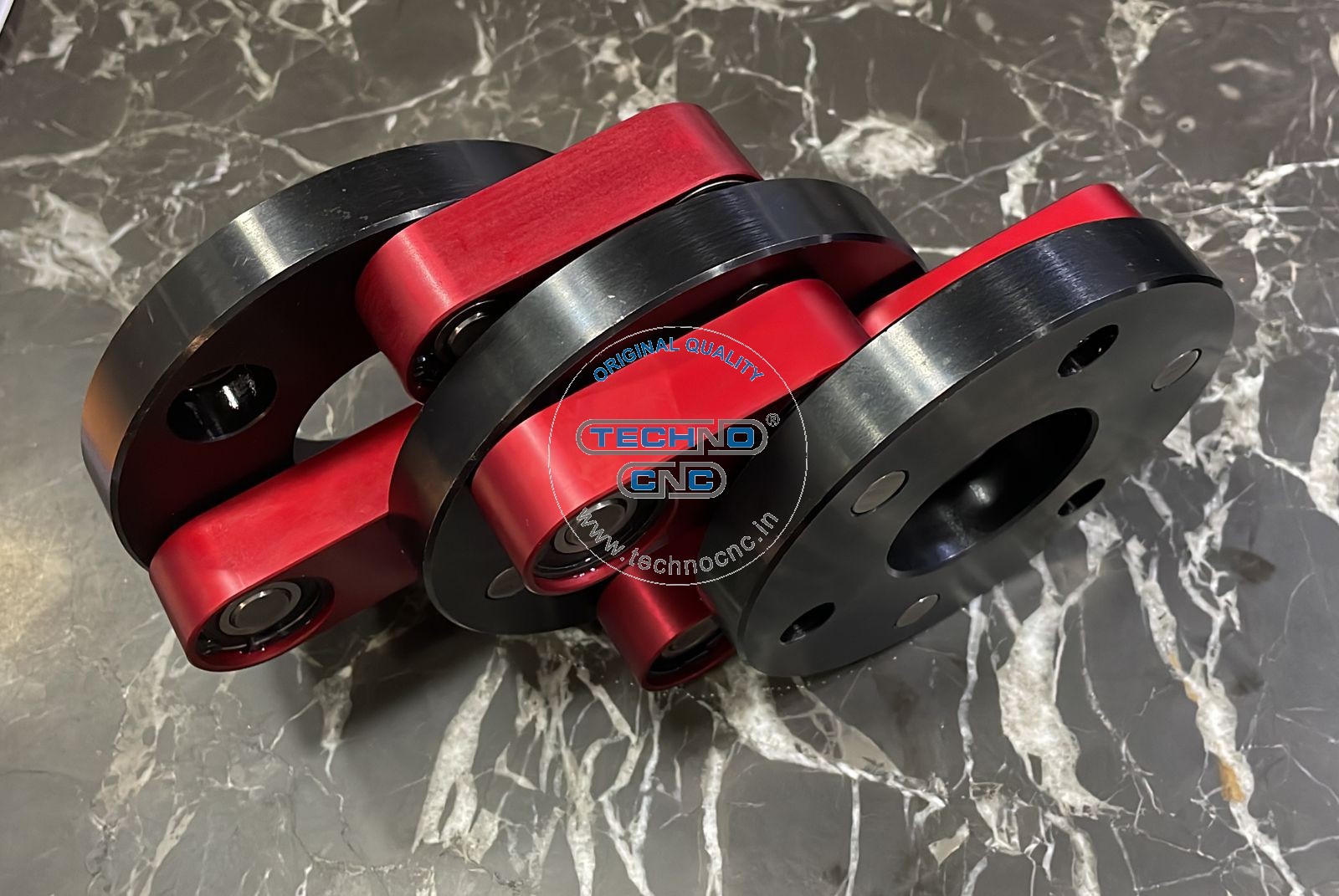

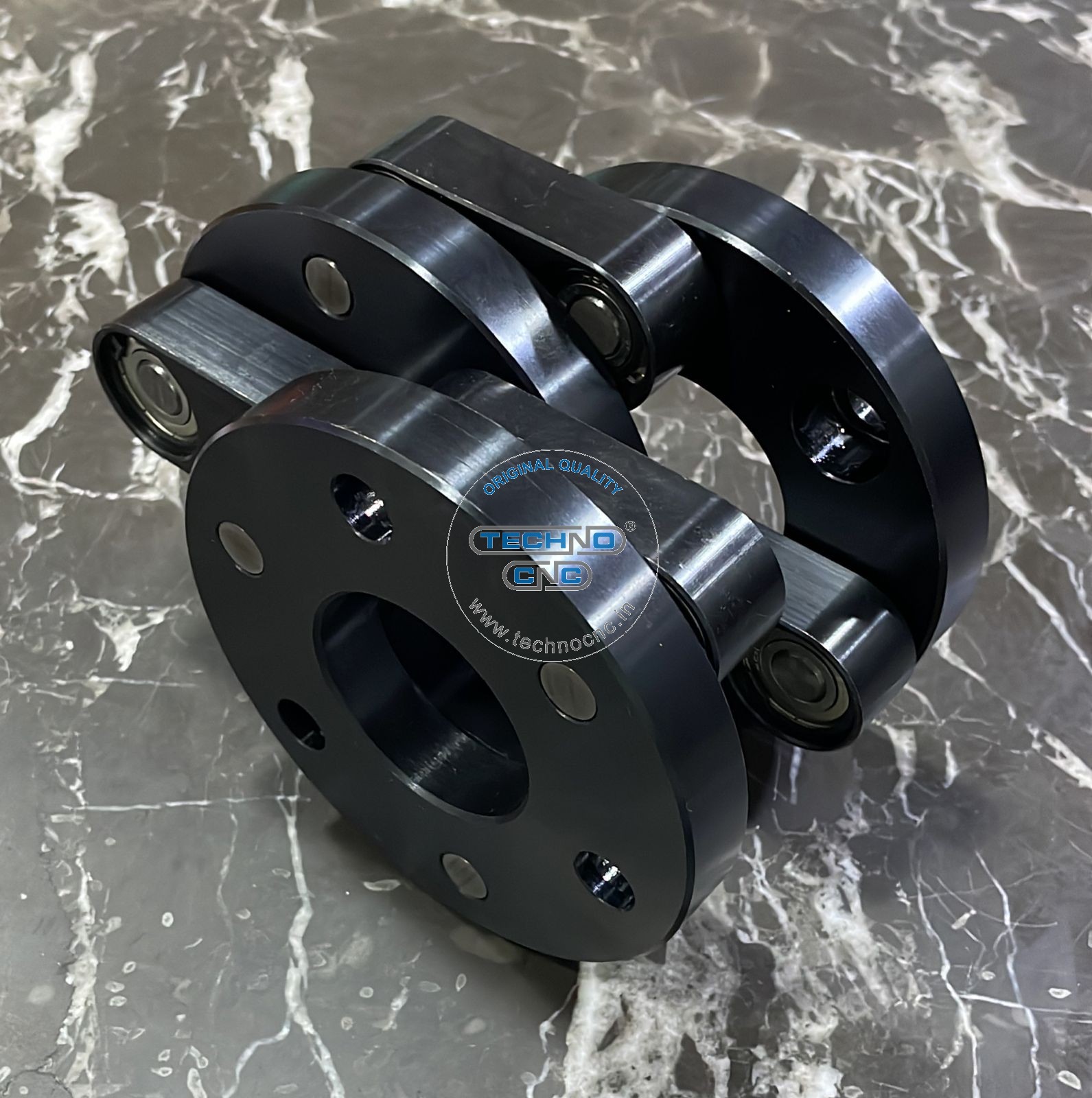

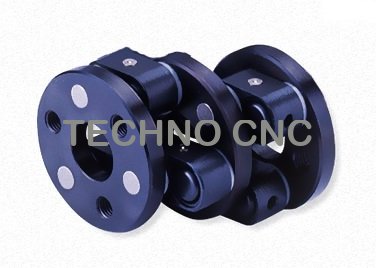

The NSS 10.9.12 Model of Schmidt Couplings is a specially designed coupling system that enables the connection of shafts with different centers. It utilizes a crank motion of a link to transmit motive power from one end disc to the other end disc. This unique mechanism efficiently transfers rotation speed and torque from the driving side to the driven side while minimizing friction loss in the bearing. The Schmidt Couplings NSS 10.9.12 Model provides reliable and precise power transmission for various applications.


Additional Information

COMPATIBLE WITH Where need Parallel Displacement of Shaft & NORD, Uflex Laminator,
MOQ 1 Assy

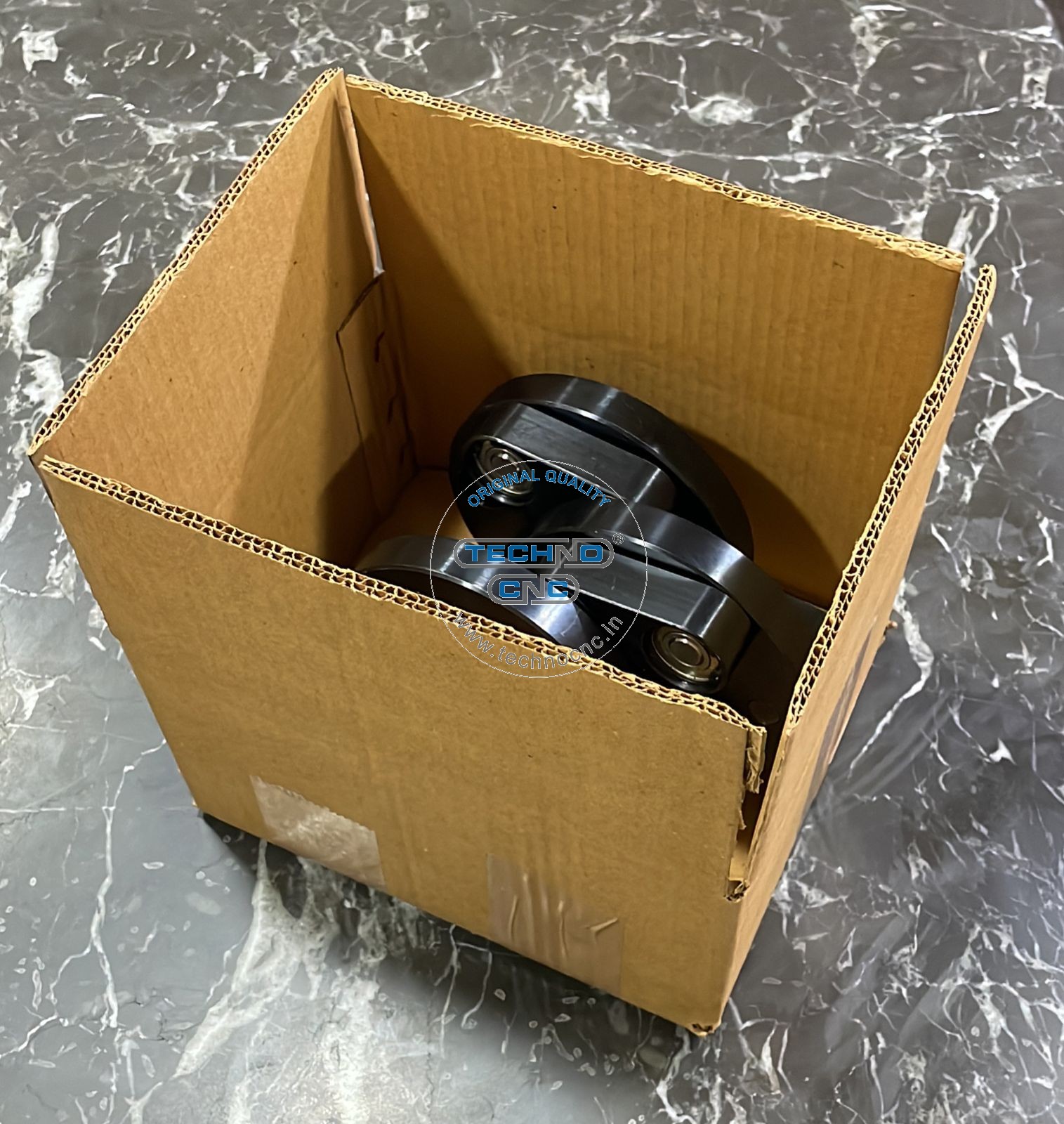

PACK OF 1 GWT 5.350 kg, Box Size: 21 x 19 x 11
EST. SHIP 1-2 Days After Payment Receipt
