Product Specification
| ITEM CODE | G652.S360.55 |
|---|---|

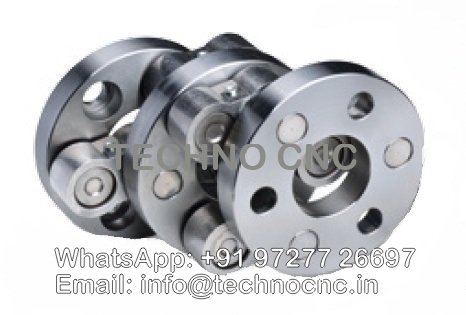

| ITEM NAME | SCHMIDT Coupling / Butterfly coupling / Butterfly Universal Coupling |

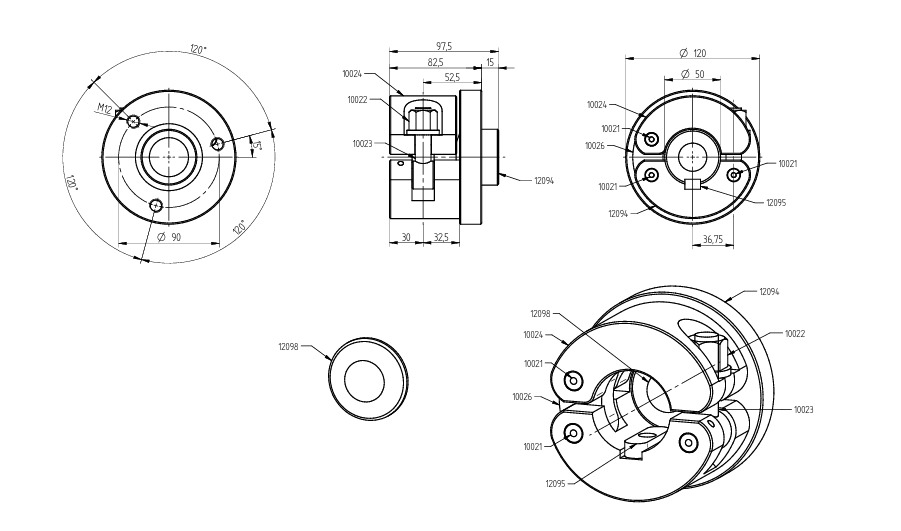

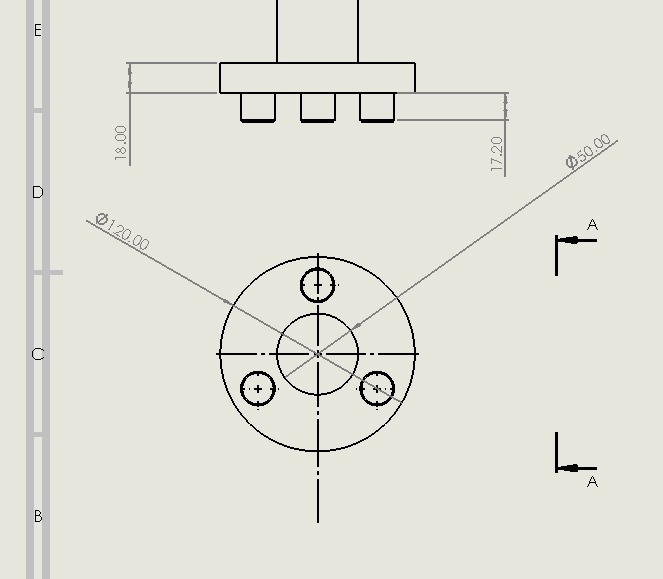

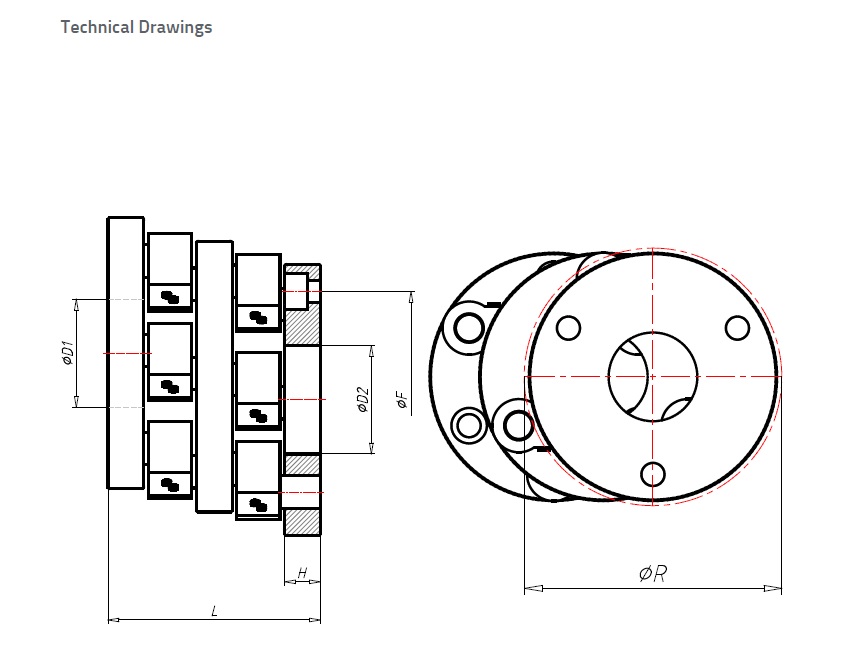

| DIMENSIONS | OD Ø120.00 x ID Ø50.00 x Coupling Length 101.00 mm (Flange Thickness 17 mm) Bolt Circle Diameter (PCD) 90 mm, Number of Counter Bores 3xM12 |
| ITEM WEIGHT (Mass) | 5.100 kg |
| MATERIAL | Stainless Steel |
| FINISH | CNC Machined |
| BRAND | TECHNO |
| COO | MADE IN BHARAT (IN) |

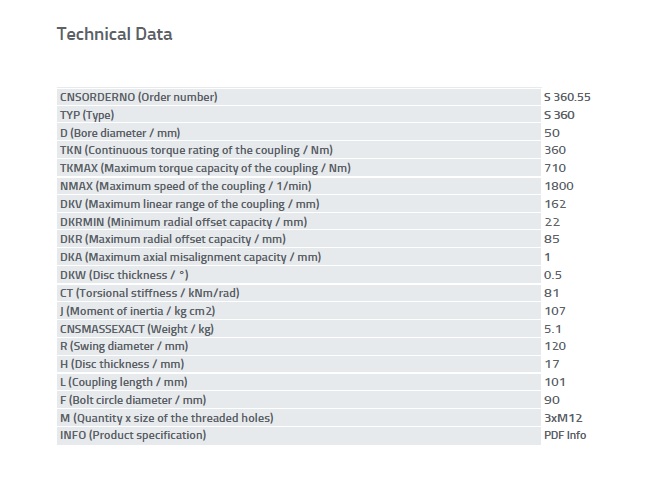

| Nominal Torque T KN Nm | 360 Nm |
| Maximum Toruque Capacity T K max Nm | 710 Nm |
| Maximum RPM | 1800 RPM |
| Maximum Linear Range of the Coupling Kv | 162mm |
| Maximum Radial offset Capacity | 85 mm |
| Min Required radial offset | 22 mm |
| Max. Axial Misalignment capacity | 1 mm |
| Max. Angular Misalignment capacity | 0.5' Degree |
| torsional stiffness | 81 kNm/rad |
Product Description

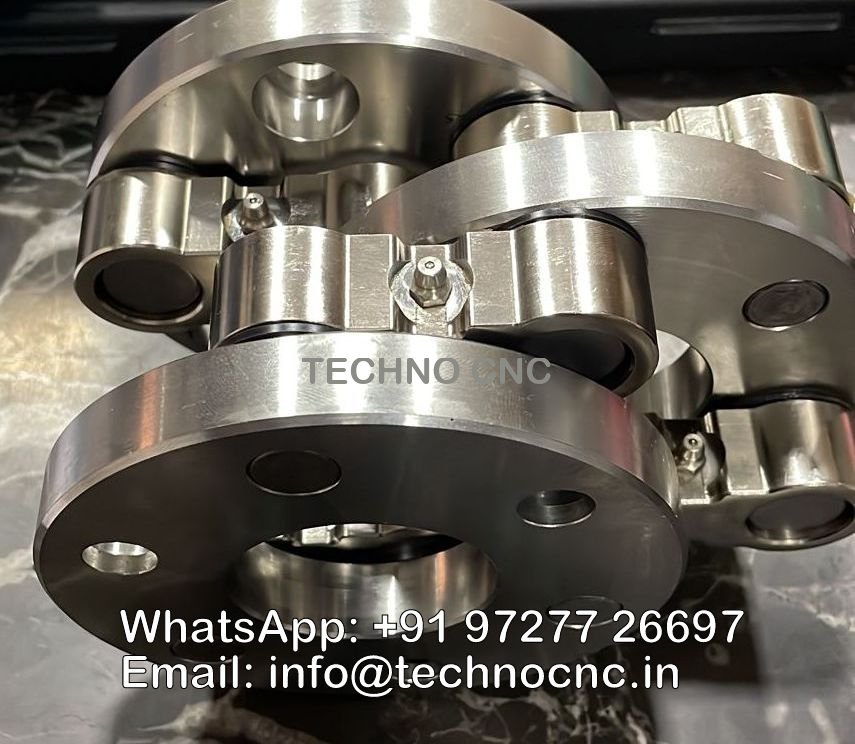

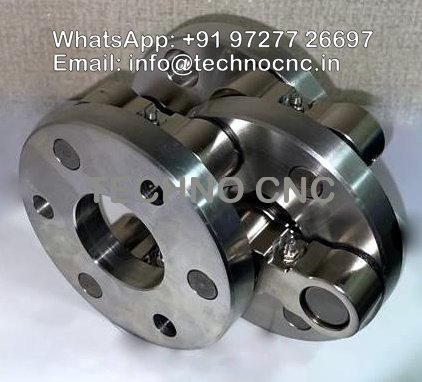

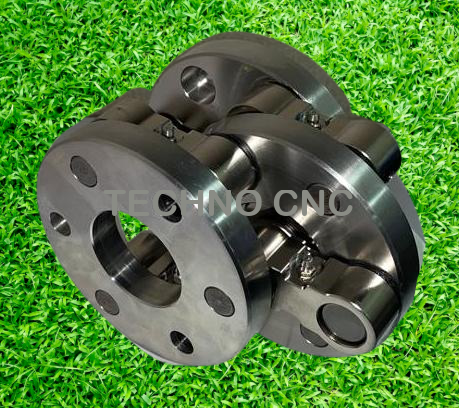

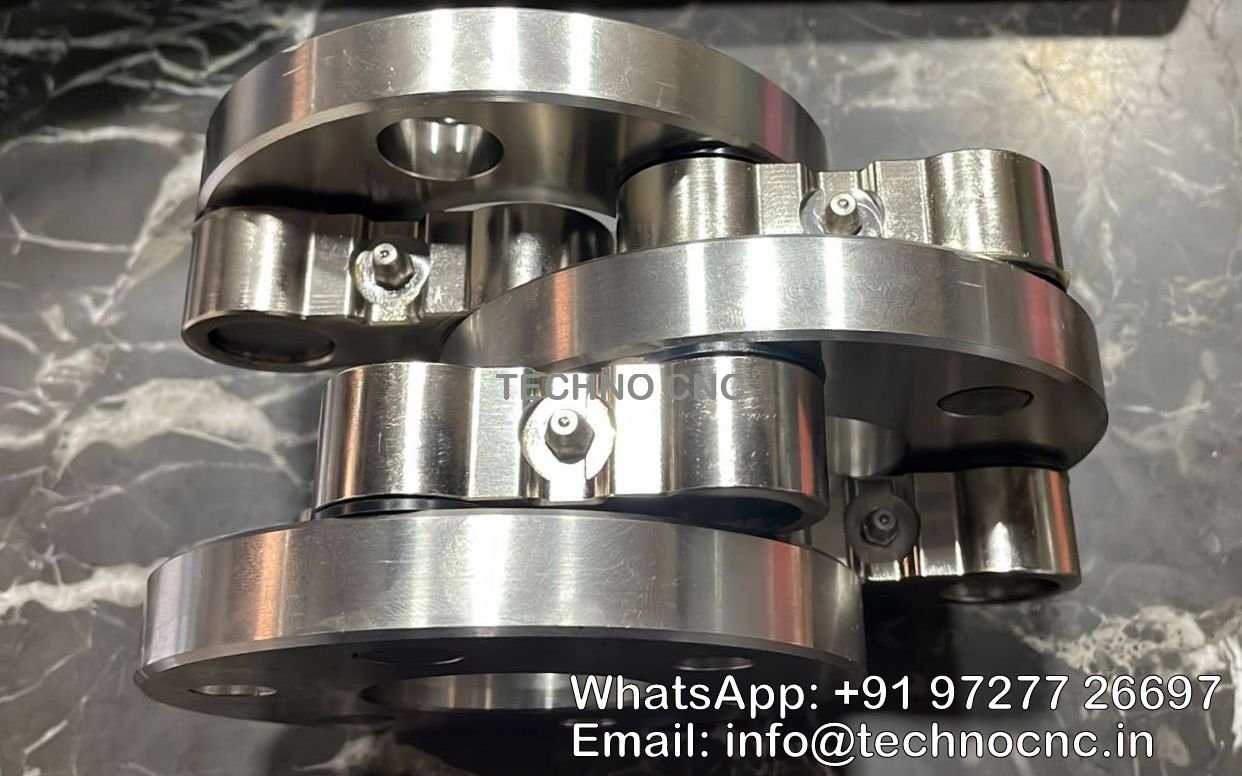

A Schmidt Coupling is a high-performance mechanical coupling engineered to handle large radial shaft displacement while maintaining smooth and precise torque transmission. Also known as a Butterfly Coupling or Butterfly Universal Coupling, it is widely used in laminating machines and other industrial drive systems.
TECHNO CNC supplies complete SPARES FOR LAMINATING MACHINES – SCHMIDT COUPLING, including the NSS 10.9.12 Model, available in multiple configurations:
-
S360.55 (S360 = size series, 55 = flange mounting)
-
Locking Assembly Type
-
Flange Mounting Type
-
Standard Hub Type
-
Fully compatible with SCHMIDT-KUPPLUNG standards
TECHNO CNC – Customized to Tailor-Made Coupling Solutions
TECHNO CNC offers torsionally rigid, compact, and high-functionality coupling solutions engineered for demanding industrial applications. Our designs are continuously improved using market feedback, ensuring a wide range of variants suitable for diverse machine requirements.
For applications that exceed standard configurations, we provide custom-designed Schmidt couplings, developed through close collaboration with customers to deliver optimal performance, precise integration, and long-term reliability.
Engineering Support & Technical Expertise
Our comprehensive support includes:
-
Expert consultation
-
FEM analysis
-
Prototype development & rapid prototyping
-
Design validation using advanced testing facilities
Additional Information
| USES | S360.55 for Simplex, Nexus One, Super Simplex, Nexus Evo, NORD |
|---|---|
| MOQ | 1 Assembly |
| PACKAGE | Box 21 × 18 × 11 cm, Gross Weight 5.300 kg |
| EST. SHIP | 1–2 Days After Payment |
| UPDATE | 30/11/2025 J |
