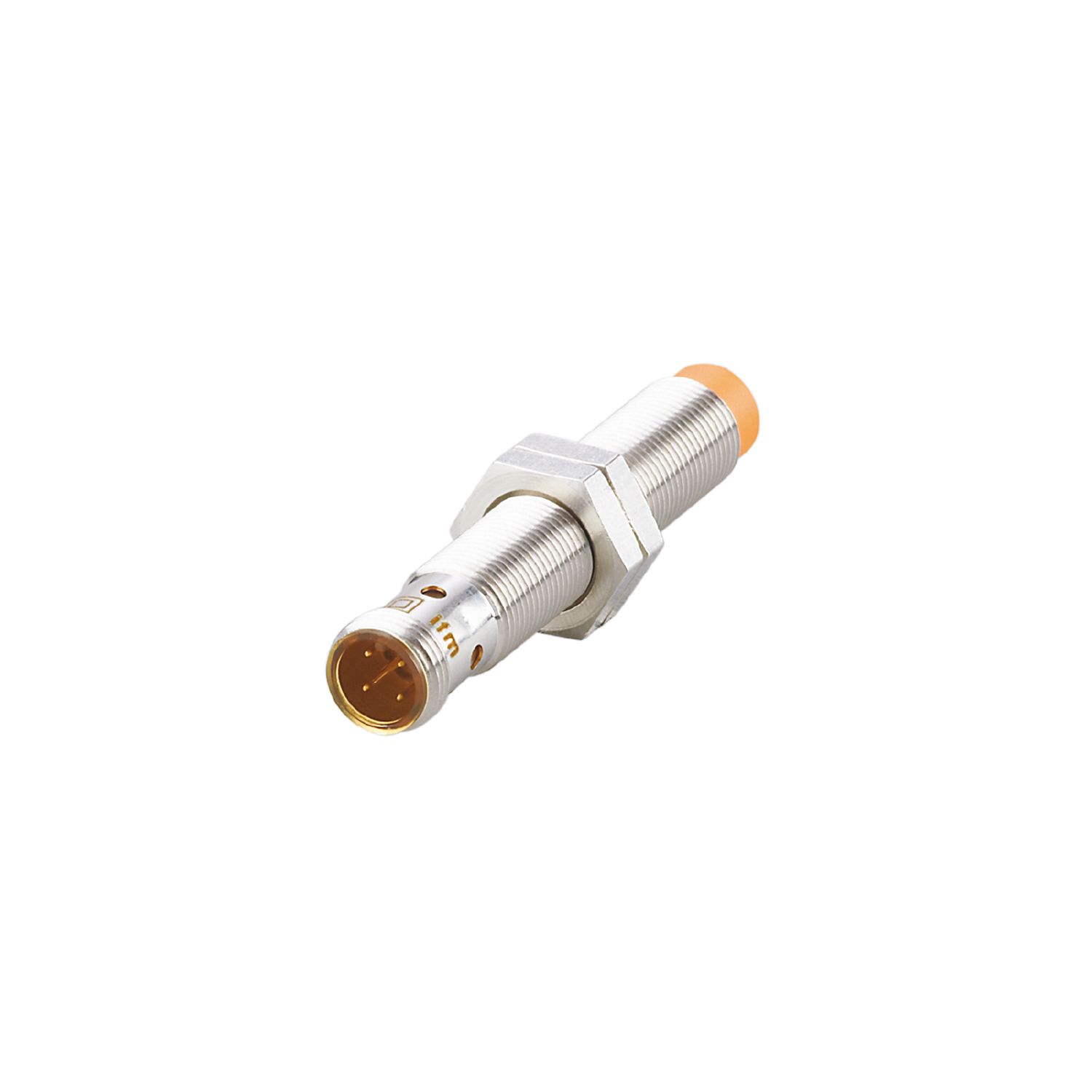

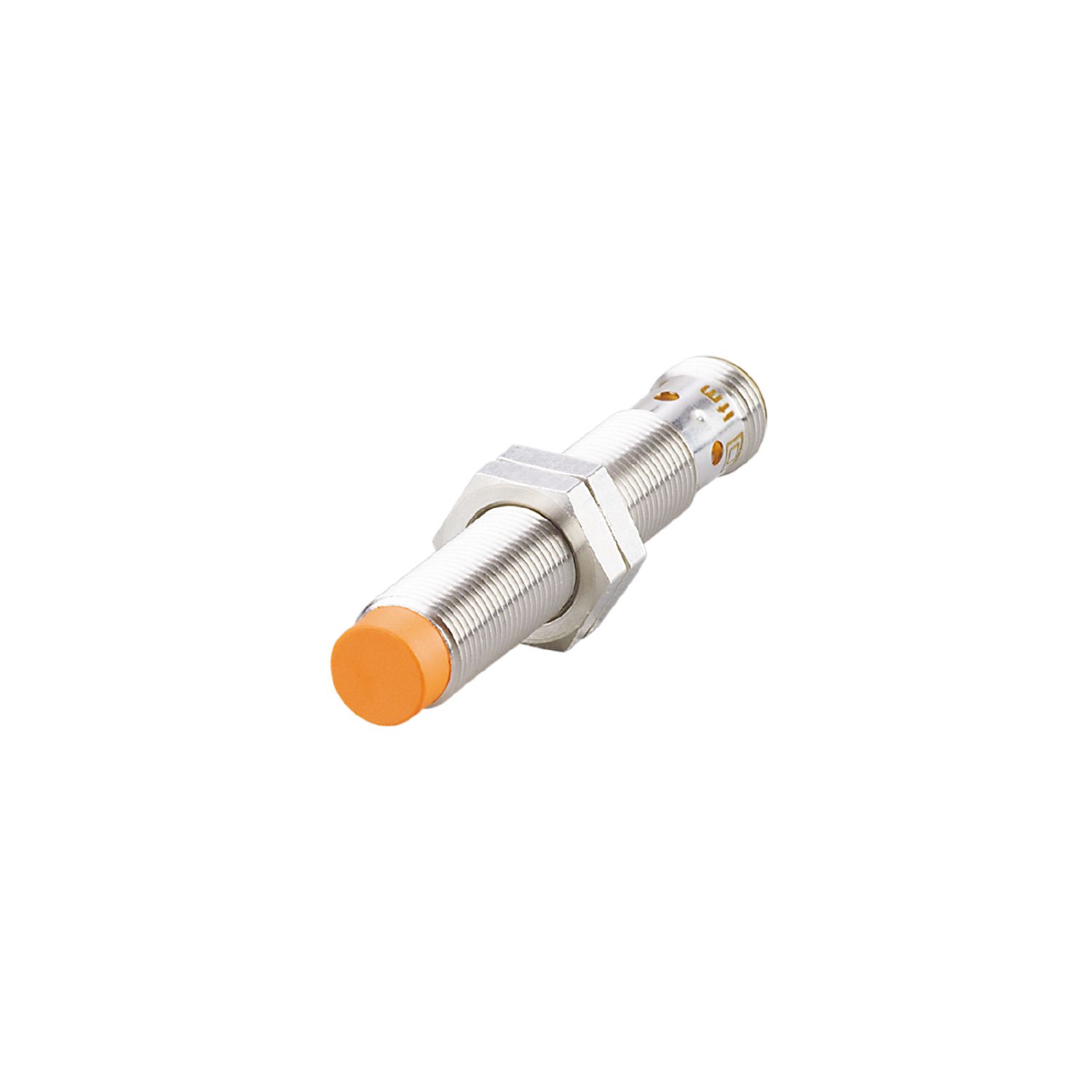

Inductive Sensor IF5904

Business Price: View Latest Price ₹5900.00 + GST 68 USD, 65 EUR
Final Price: ₹6962.00 (incl. GST) +Delivery
Stock Availability: Backorder


Product Specification

ITEM CODE IFK4004-CPKG/US-104
ITEM NAME Inductive sensor IFK4004-CPKG/US-104 | Inductive Sensor IF5904
DIMENSIONS M12 x 1 / L = 70 mm
ITEM WEIGHT 30 g
MATERIAL brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
FINISH White bronze coating
BRAND TECHNO
COO Made in BHARAT (IN)
Category: Inductive Sensor


Product Description

Description:

The Inductive Sensor IF5904 is designed for robust performance in industrial environments. Its threaded housing and complementary NO/NC output functions make it ideal for a variety of applications. With clearly visible status LEDs and a high switching frequency, this sensor provides reliable and efficient operation.

Key Features:

  • Complementary output function NO/NC.
  • Clearly visible indication of the switching status.
  • Wide operating temperature range (-25°C to 80°C).
  • Very high switching frequency (up to 1200 Hz).
  • Robust metal housing suitable for harsh industrial environments.
  • Gold-plated contacts for improved conductivity.
  • IP67 protection for dust and water resistance.

Accessories for IF5904:

  • Tools
  • Connection cables with socket
  • Jumper cables

# Description:

  • The IFK4004-CPKG/US-104 is an inductive sensor with a 4 mm sensing range. It features a threaded type housing with M12 x 1 dimensions and a length of 70 mm. This sensor is designed with gold-plated contacts and complementary output function. It operates on a voltage of 10...30 DC. It has a short-circuit and overload protection. The sensor is non-flush mountable and has a switching status display with 4 yellow LEDs. It also comes with two lock nuts. The sensor's materials include brass with a white bronze coating, PBT orange for the sensing face, PEI for the LED window and brass lock nuts, also with a white bronze coating.

Additional Points from the Source:

  • The sensor has a protection class of IP67.
  • It has reverse polarity protection.
  • The sensor has an operating temperature range of -25 to 80 °C.
  • The sensor has been tested for EMC (ElectroMagnetic Compatibility) and meets specific standards.
  • The sensor has a long MTTF (Mean Time To Failure) of 1865 years.


Additional Information

Uses Ideal for sensing applications in automation, robotics, and industrial equipment. Object detection in industrial automation, position sensing, etc.
MOQ 1 piece
Package Dimension and Weight: (To be determined - based on your packaging)
Estimated Shipping Time: (To be determined)
Lead Time 3-4 Week
