| ITEM CODE | S0004.RJ-N |
|---|---|

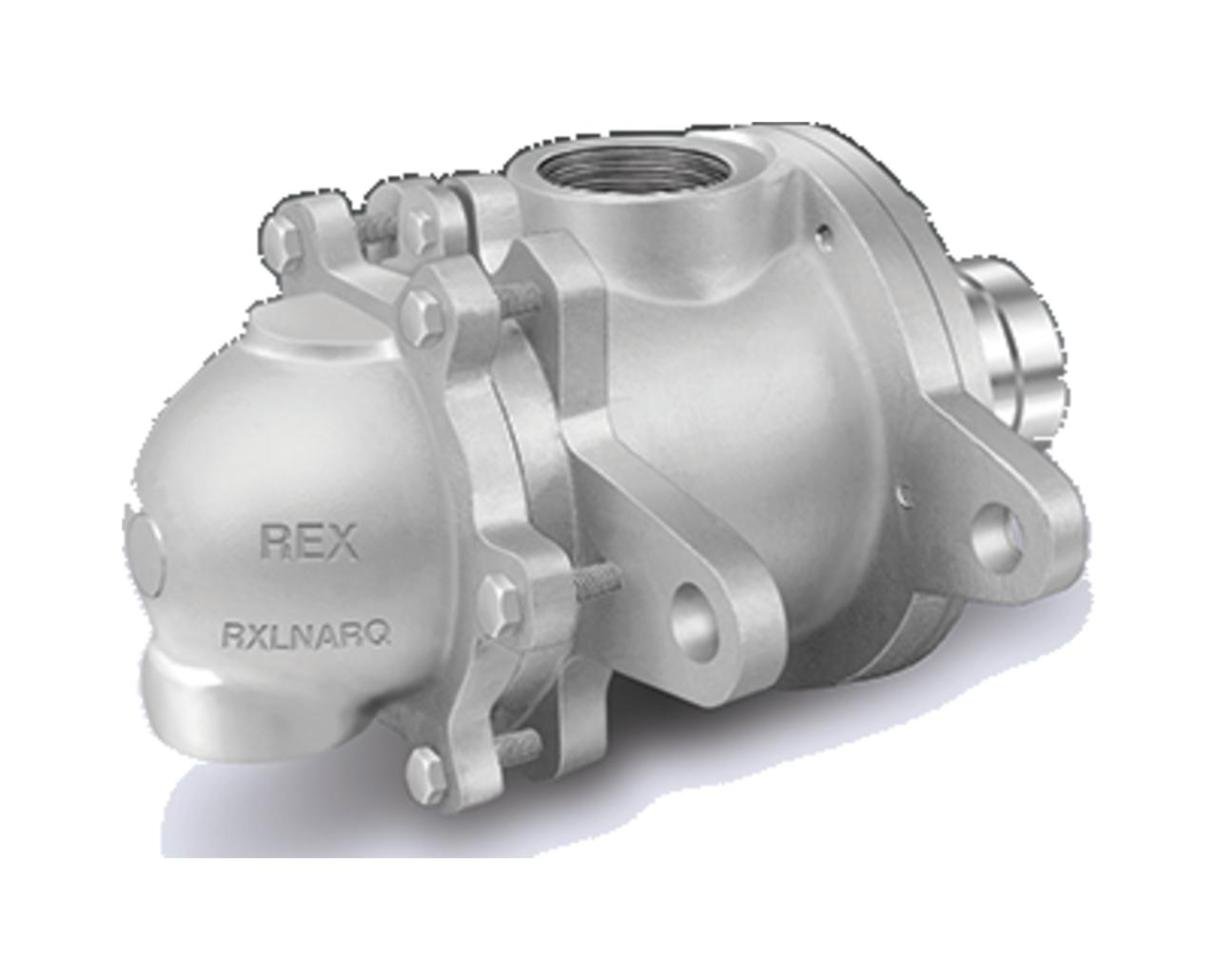

| ITEM NAME | OEM Rotary Joint N-Series – Rod-Supported, Rotating Syphon, 1-1/2" to 6" |
| DIMENSIONS | Sizes: 1-1/2" to 6" |
| ITEM WEIGHT | As per size |
| MATERIAL | Cast body with support lugs, carbon graphite seal rings, keyed nipple & thrust collar |
| FINISH | Industrial finish |
| BRAND | OEM Genuine |
| COO | Made in BHARAT (IN) |
| TYPE | Rotary Joint, rod-supported |
| FLOW | Rotating syphon / rotating distribution pipe |
| MEDIA | Steam, Condensate |
| MAX PRESSURE | Up to 150 PSI (approx. 10 bar) |
| MAX SPEED | As per size |
N-Series OEM rotary joint for machines where the inner syphon or distribution pipe turns with the roll, such as paper machine dryers with rotary syphons, double shell dryers and rotary steam tube dryers. The joint is carried on support rods, so its weight is kept off the internal parts. Nipple and thrust collar are keyed together and run against carbon graphite seal rings; in service the joint is pressure sealed and needs no lubrication. Sizes 1-1/2 inch to 6 inch, up to 150 PSI.
| COMPATIBLE WITH | Paper machine dryers, double shell dryers, rotary steam tube dryers |
|---|---|
| MOQ | 1 Piece |
| PACKAGE | As per size |
| AVAILABILITY | Made to order / On request |
| EST. SHIP | 7–10 Working Days (India) / 10–15 Days (Export) |
