| ITEM CODE | S0004.RJ-H |
|---|---|

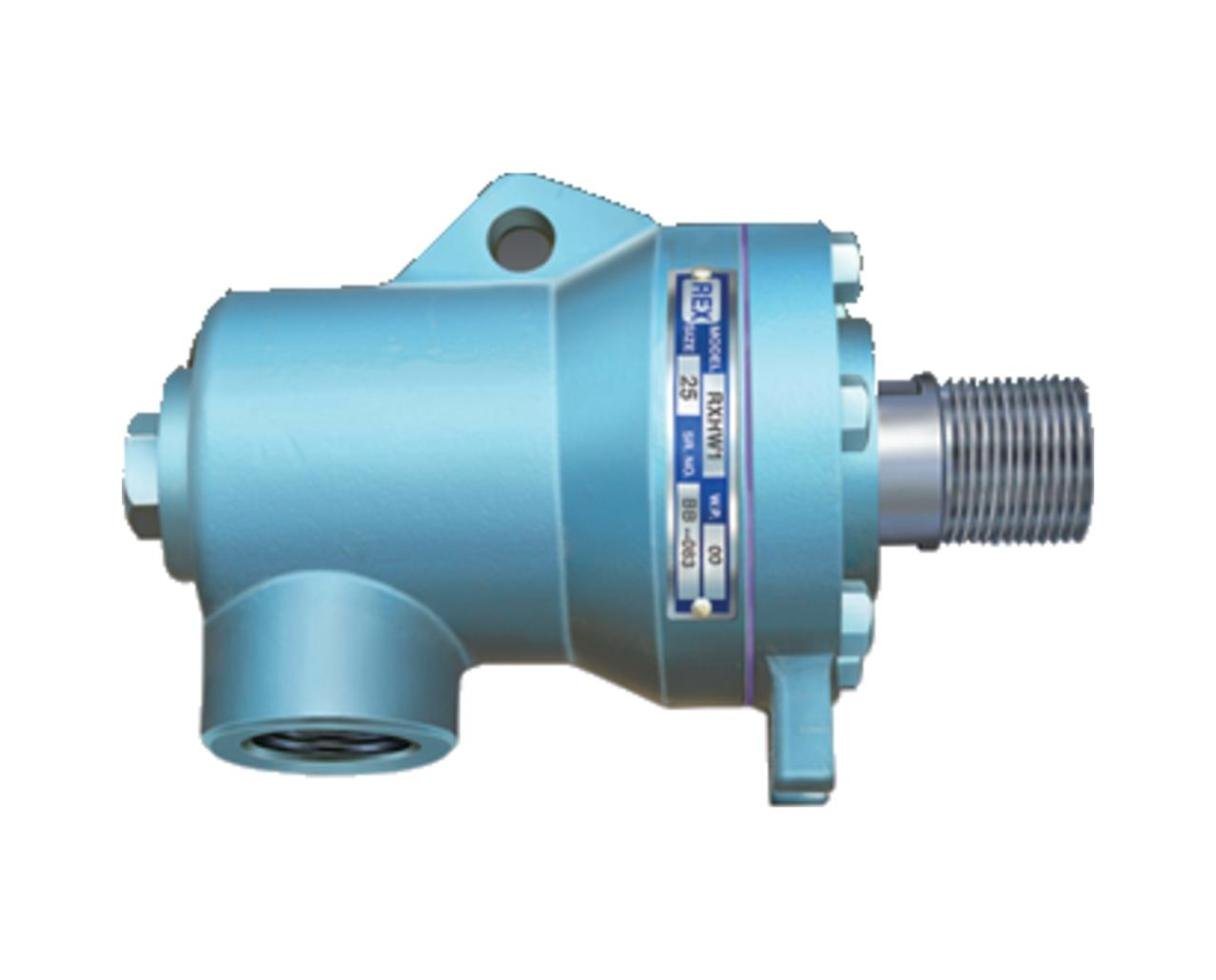

| ITEM NAME | OEM Rotary Joint H-Series – High Speed, High Pressure Steam Joint, 1/2" to 4" |
| DIMENSIONS | Sizes: 1/2" to 4" |
| ITEM WEIGHT | As per size |
| MATERIAL | Cast housing, pinned carbon guide bushes, compression-loaded carbon seal |
| FINISH | Industrial finish |
| BRAND | OEM Genuine |
| COO | Made in BHARAT (IN) |
| TYPE | Rotary Joint, self-supported, heavy duty |
| FLOW | Through-flow / Dual-flow stationary syphon / Dual-flow rotating syphon |
| MEDIA | Steam, Hot Water, most process media |
| MAX PRESSURE | Up to 150 PSI (approx. 10 bar) |
| MAX SPEED | Up to 200 RPM |
H-Series OEM rotary joint built for faster machines and higher pressure and temperature than ordinary self-supported joints. Two wide carbon guide bushes give large radial support area and keep alignment longer; the bushes are pinned or keyed so they cannot spin and damage the spring. A simple locking fork on the end cover makes installation easy. Offered in through-flow, dual-flow with stationary syphon and dual-flow with rotating syphon, sizes 1/2 inch to 4 inch, up to 150 PSI and 200 RPM.
| COMPATIBLE WITH | High-speed dryer cylinders, calenders, corrugators, paper & board machines |
|---|---|
| MOQ | 1 Piece |
| PACKAGE | As per size |
| AVAILABILITY | Made to order / On request |
| EST. SHIP | 7–10 Working Days (India) / 10–15 Days (Export) |
