| ITEM CODE | S0004.ST-BF |
|---|---|

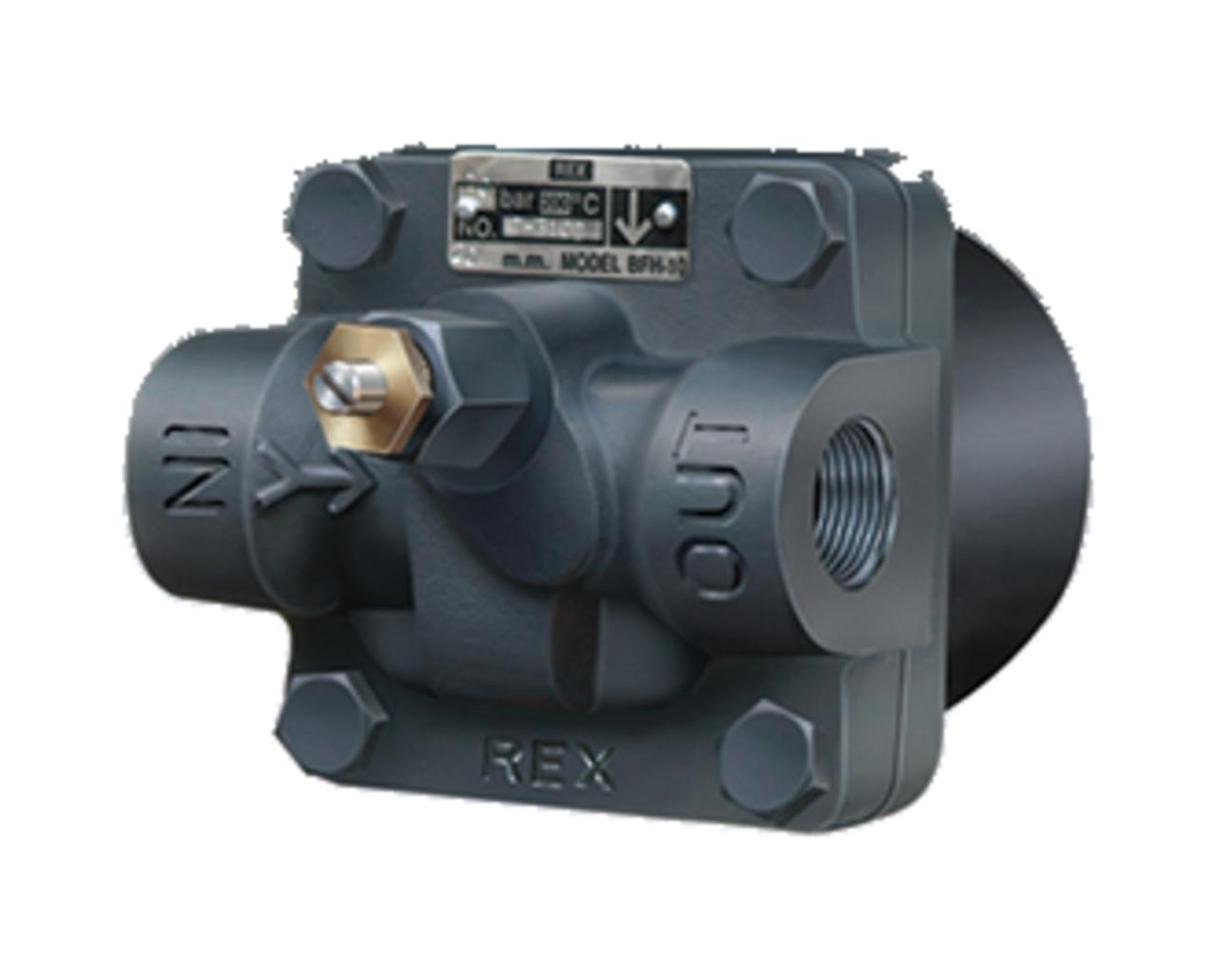

| ITEM NAME | OEM Ball Float Steam Trap – Continuous Discharge with SLR (BF Series type) |
| DIMENSIONS | Sizes: 1/2" to 2" |
| ITEM WEIGHT | As per size |
| MATERIAL | Body as per model, stainless steel internals |
| FINISH | Industrial finish |
| BRAND | OEM Genuine |
| COO | Made in BHARAT (IN) |
| TYPE | Ball float steam trap with steam lock release (SLR) |
| MODELS | BFH-14, BFH-10 type |
| MEDIA | Steam / Condensate |
| CONNECTION | In-line horizontal |
Ball float steam trap that drains condensate continuously as fast as it forms. A float opens the main valve as condensate level rises and closes it tightly when the condensate has cleared; the valve always sits under a water seal, so live steam is not lost. Steady, modulating discharge avoids pressure swings in heat exchangers and air heating coils. Stainless steel internals, in-line horizontal connections, and internals can be serviced without disturbing the piping. Steam lock release prevents steam locking where condensate is lifted to the trap.
| COMPATIBLE WITH | Heat exchangers, air heating coils, jacketed pans, process heaters |
|---|---|
| MOQ | 1 Piece |
| PACKAGE | As per size |
| AVAILABILITY | Made to order / On request |
| EST. SHIP | 7–10 Working Days (India) / 10–15 Days (Export) |
