| Business Price: | View Latest Price ₹449900.00 + GST |
| Final Price: | ₹530882.00 (incl. GST) + Delivery, |
| Stock Availability: | Backorder |
Product Specification

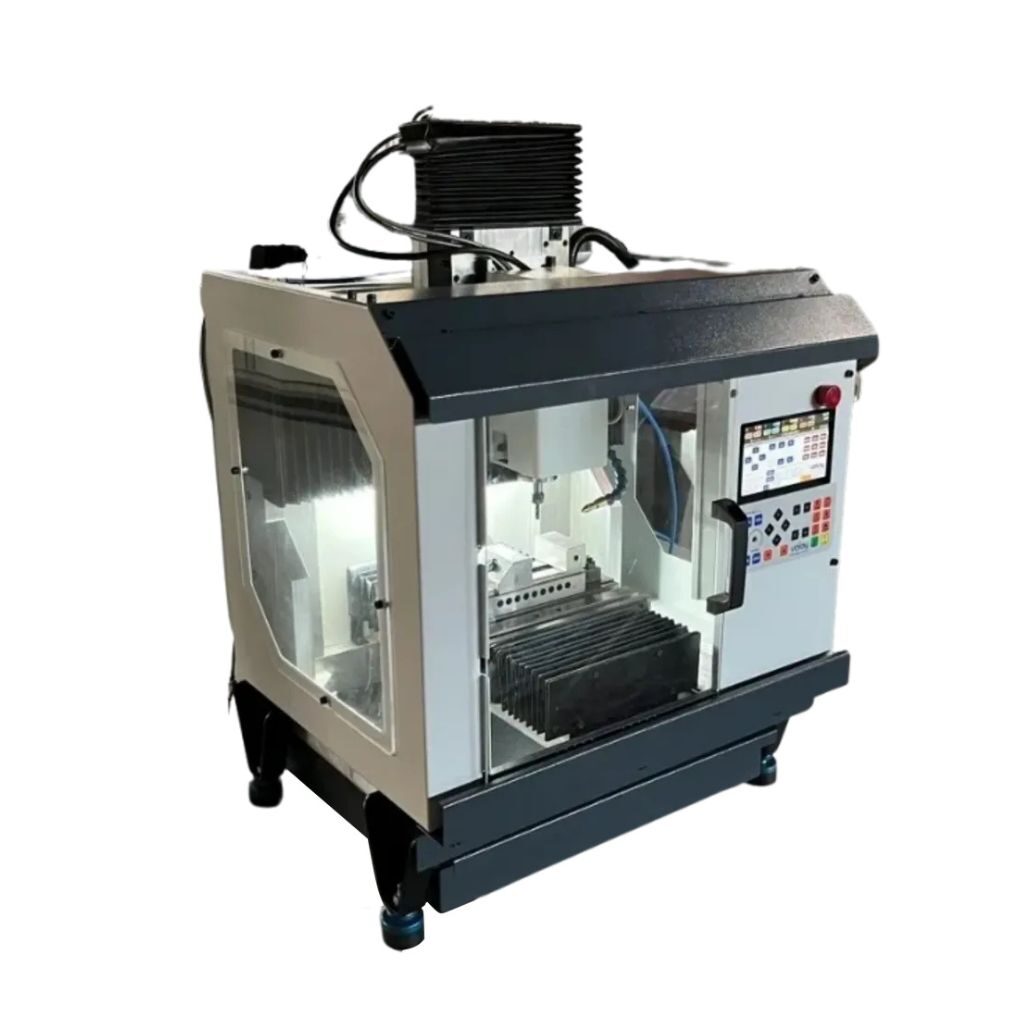

| ITEM NAME | Vertical Mill NANO - Precision CNC Deskmill with Innovative 5-Axis Controller |
|---|---|
| Machine Travel | 300mm (X) X 200mm (Y) X 150mm (Z) |
| BRAND | Authorized Distributor |
| COO | Made In BHARAT (IN) |
| What Kind of Parts Produce | Acetate Frames, Engraving, Precision Dies |
| Drivers | Easyservo |
| HMI | 7 inch Touchscreen with wide viewing angle |
| Spindle | 24000 RPM, 1hp |
| Positioning Accuracy | 0.010mm |
| Total weight | 150 kg (approx) |
| Machine Dimensions | 28”-660mm (left to right) x 29”-750mm (front to back) x 37”-930mm (height) |
| Coolant | Mist |
| Pendant | Wireless |
| Total power rating | 2kVA, single phase |
| MOP | with rotary encoders for feedrate and RPM overrides |
| Internal memory for programs | 32GB |
| Controller | v7.6 |
| HSN | Machinery 8457 |
Product Description
Vertical Mill NANO is the best-in-class CNC deskmill with the most innovative 5-axis controller, allowing up to 5-axis simultaneous motion. Program transfer is seamlessly handled by Wifi, ensuring efficient operations. With a high RPM motorized spindle, optional mist coolant, and a wireless pendant for easy operation, this desk mill offers the best price in its segment. Its touchscreen HMI makes it industry 4.0 ready, and the machine requires very low maintenance.
- Best in class CNC deskmill
- Most innovative controller up to 5 axis simultaneous motion
- Program transfer by Wifi
- Best price in the segment
- High RPM motorized spindle
- Mist coolant (optional)
- Very low maintenance
- Touchscreen HMI
- Wireless pendant for easy operating
- Industry 4.0 ready
- Most innovative 5 Axis controller
- Program transfer by Wifi/Ethernet,
- Best price in the segment
- Automatic fast probing for quick Z zero
- No need to keep host PC on while running programs
- Very low maintenance
Additional Information
| USES | VMC, CNC, DESKTOP MILL, ENGRAVING MACHINE, JEWELLERY, WATCH CASE, |
|---|---|
| MOQ | 1 Unit |
| PACKAGE | Approx. 900mm x 800mm x 1200mm – 300kg (Varies by model) |
| AVAILABILITY | Made-to-Order / Custom Configurations Available |
| EST. SHIP | Fast Global Delivery with Secure Logistics |
| UPDATE | 19/04/2025 J |
