Product Specification

ITEM CODE	G208.21827365

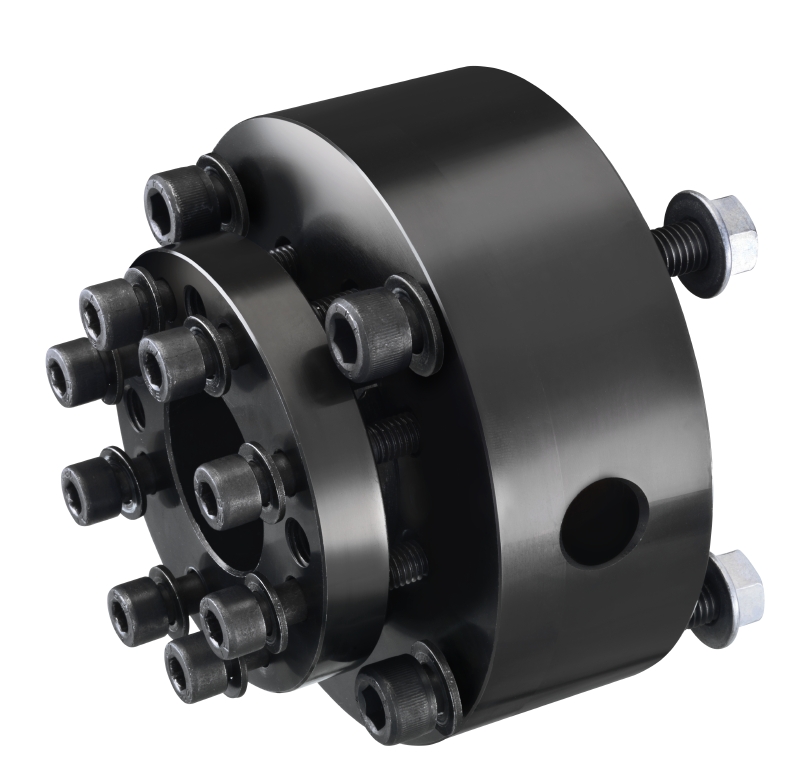

ITEM NAME	Propeller shaft coupling
DIMENSIONS	Customizable (Based on Propeller Shaft Size and Design)
Weight incl. packaging	Approx. 1kg – 10kg (Varies with Size and Material)
MATERIAL	Marine Grade Stainless Steel / Alloy Steel / Brass
FINISH	Corrosion-Resistant Coating / Passivated / Polished
BRAND	TECHNO
COO	Made in BHARAT (IN)

Product Description

The Propeller Shaft Coupling from TECHNO CNC is an essential component for marine propulsion systems, designed to efficiently connect the propeller shaft to the engine or motor. Manufactured from high-strength materials like marine-grade stainless steel or alloy steel, this coupling ensures a secure, reliable, and durable connection for smooth power transmission in various marine vessels.

This precision-engineered coupling is built to withstand high-stress conditions in marine environments, offering corrosion resistance, high torsional strength, and longevity under continuous use. Ideal for use in commercial ships, yachts, and other watercraft, the Propeller Shaft Coupling ensures efficient and reliable operation of propulsion systems, contributing to the overall performance and safety of the vessel.

No machining required
No costly machining for tapering and keyway-cutting is required. Just cut the propeller shaft to the correct length and fit the coupling cone.
Secure it to the coupling flange with the bolts provided and the coupling is complete. The shaft coupling provides a high torsional hold without causing shaft damage.

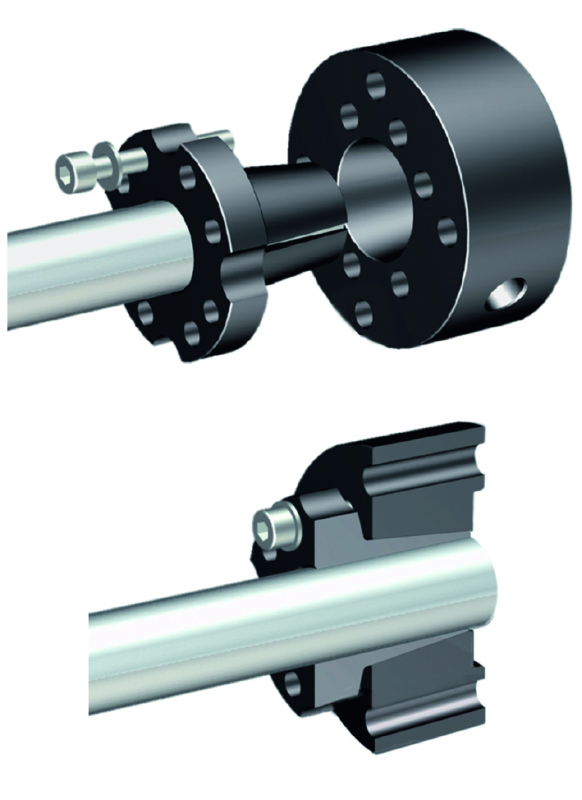

Perfect central alignment
The two-piece conic design gives the coupling perfect central alignment properties and also provides an absolute distortion free coupling fit. Altogether this makes it easier to achieve a correctly aligned driveline, essential for minimal vibration and low noise.

Features and benefits:
• Simplified installation and alignment
• Less vibration and noise
• No machining required
• Two-piece conic design
• Perfect central alignment
• High torsional hold without shaft damage
• Compact dimensions, low weight
• Virtually maintenance free
• Easy to disconnect propeller shaft, without re-adjustment
• Integrated counterhold
• Better onboard comfort

Component guide
The Techno two-piece rigid propeller shaft coupling is delivered complete with bolts, nuts, washers and installation instructions.

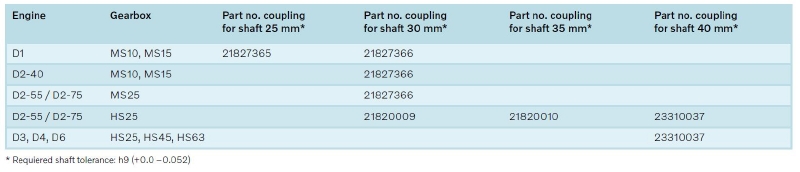

Required shaft tolerance: h9 (+0.0 –0.052)
Part no. coupling for shaft 25 mm:21827365, fit engine:D1, gear box:MS10, MS15
Part no. coupling for shaft 30 mm:21827366, fit engine:D1, gear box:MS10, MS15
Part no. coupling for shaft 30 mm:21827366, fit engine:D2-40, gear box:MS10, MS15
Part no. coupling for shaft 30 mm:21827366, fit engine:D2-55 / D2-75, gear box:MS25
Part no. coupling for shaft 30 mm:21820009, fit engine:D2-55 / D2-75, gear box:HS25
Part no. coupling for shaft 35 mm:21820010, fit engine:D2-55 / D2-75, gear box:HS25
Part no. coupling for shaft 40 mm:21820011, fit engine:D2-55 / D2-75, gear box:HS25
Part no. coupling for shaft 40 mm:21820011, fit engine:D3, D4, D6, gear box:HS25, HS45, HS63

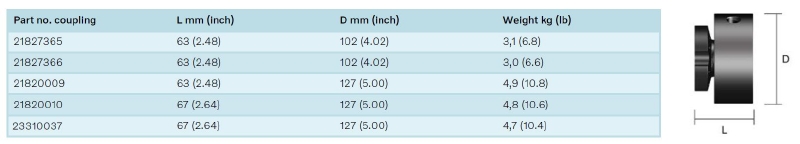

Dimensions
The shaft coupling is made from high grade 1018 steel (E 235 i ISO) with zinc-nickel coating and sealer. With its compact design the shaft coupling is also perfect for installations where space is limited. Suitable if you want to upgrade your boat driveline.

Additional Information

USES	Marine Propulsion Systems, Ship Engines, Yachts
MOQ	As per Requirement
PACKAGE	Varies by Customization and Quantity
AVAILABILITY	Ready Stock and Custom Orders Available
EST. SHIP	Fast Global Delivery with Secure Logistics
UPDATE	19/04/2025 J
