| ITEM CODE | 870 |
|---|---|
| ITEM WEIGHT | Depends on diameter and material |
| MATERIAL | Aluminum 6061-T6 / Brass / Stainless Steel 303 |
| FINISH | Black Anodized / Polished / Matte Finish |
| BRAND | TECHNO |
| COO | Made in BHARAT (IN) |
| TOLERANCE | ±0.01 mm |
| THREADING | Internal/External Precision Optical Threads |
| OUTER DIAMETER | Customizable (commonly 25 mm, 30 mm, 32 mm, etc.) |

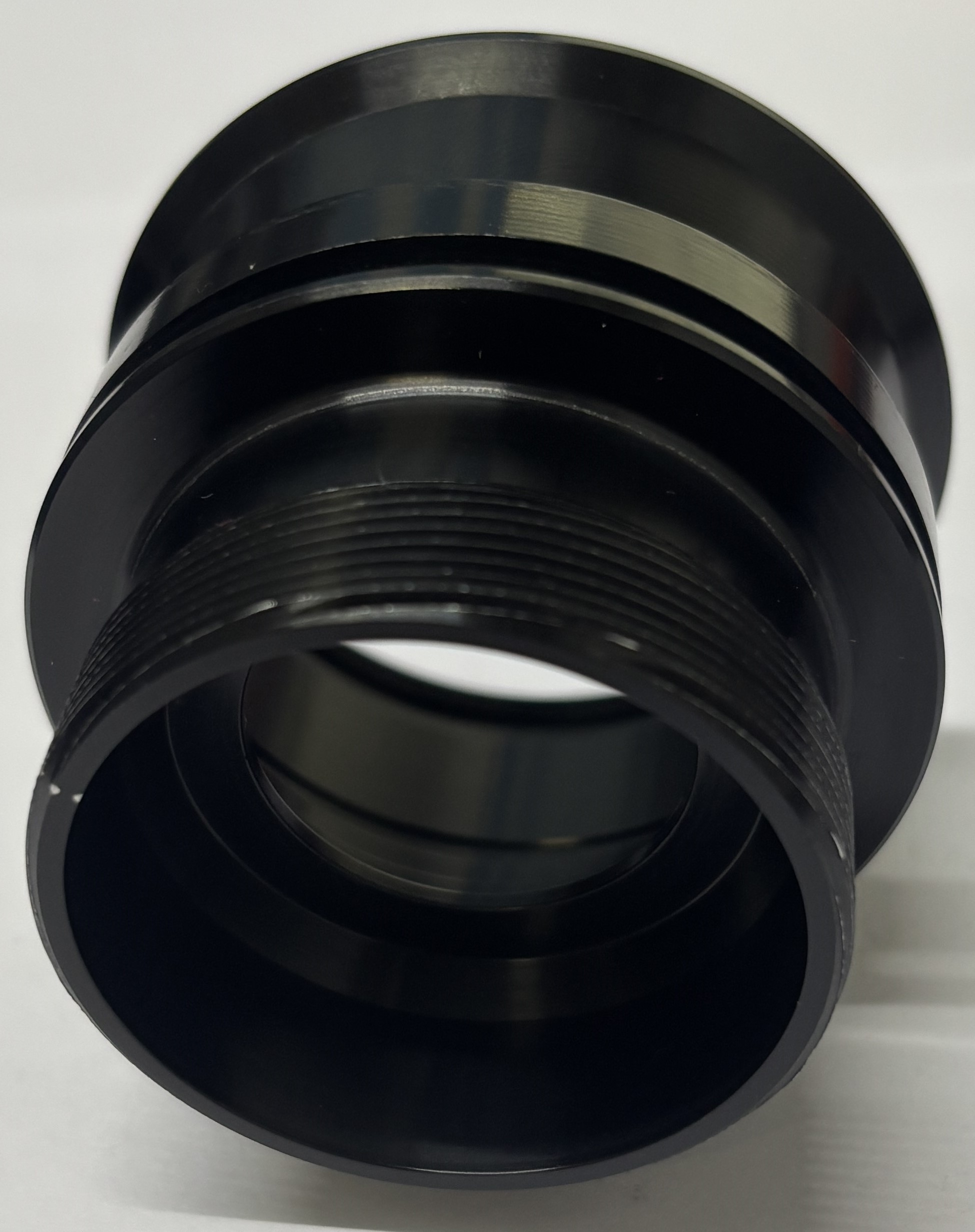

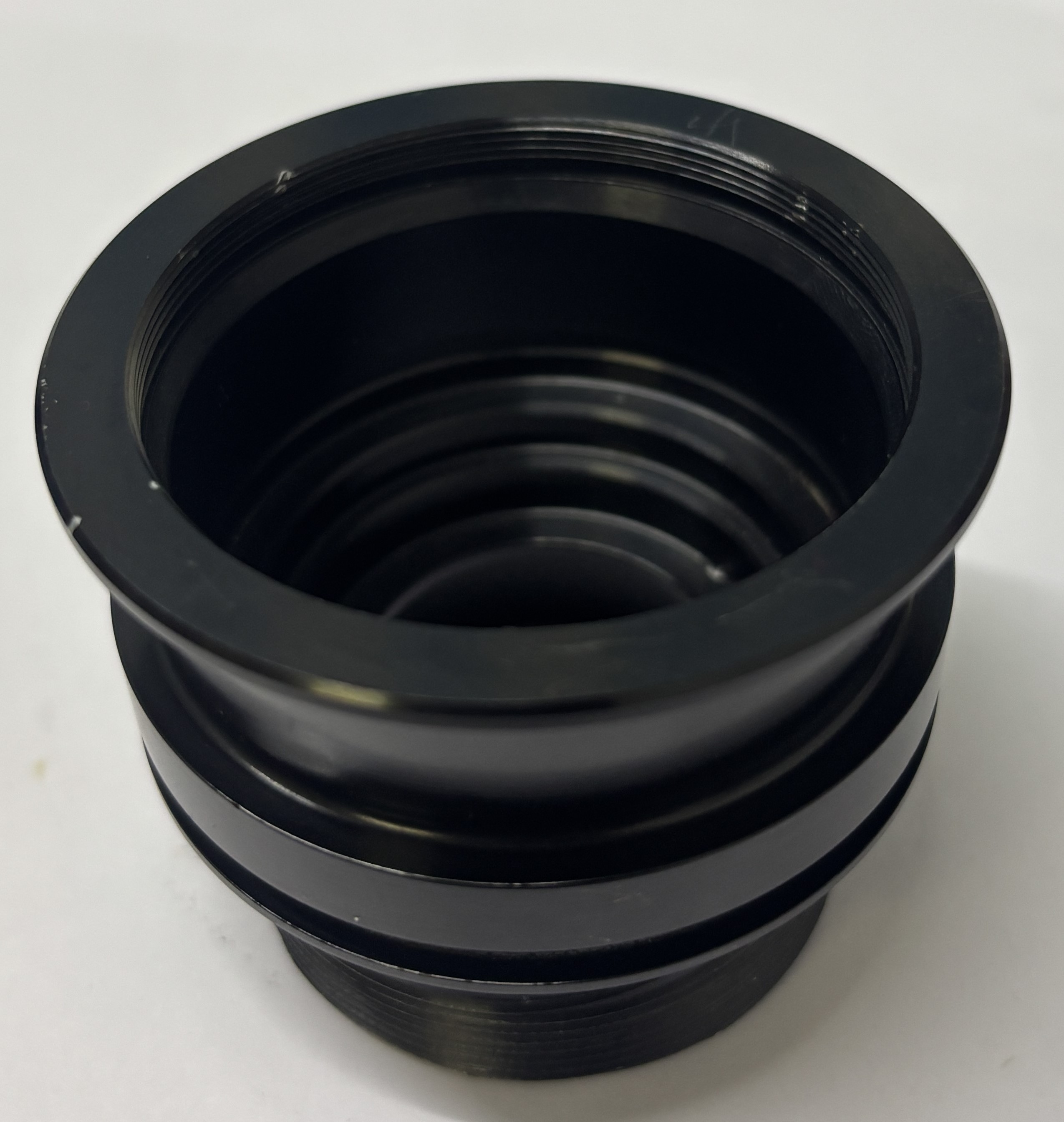

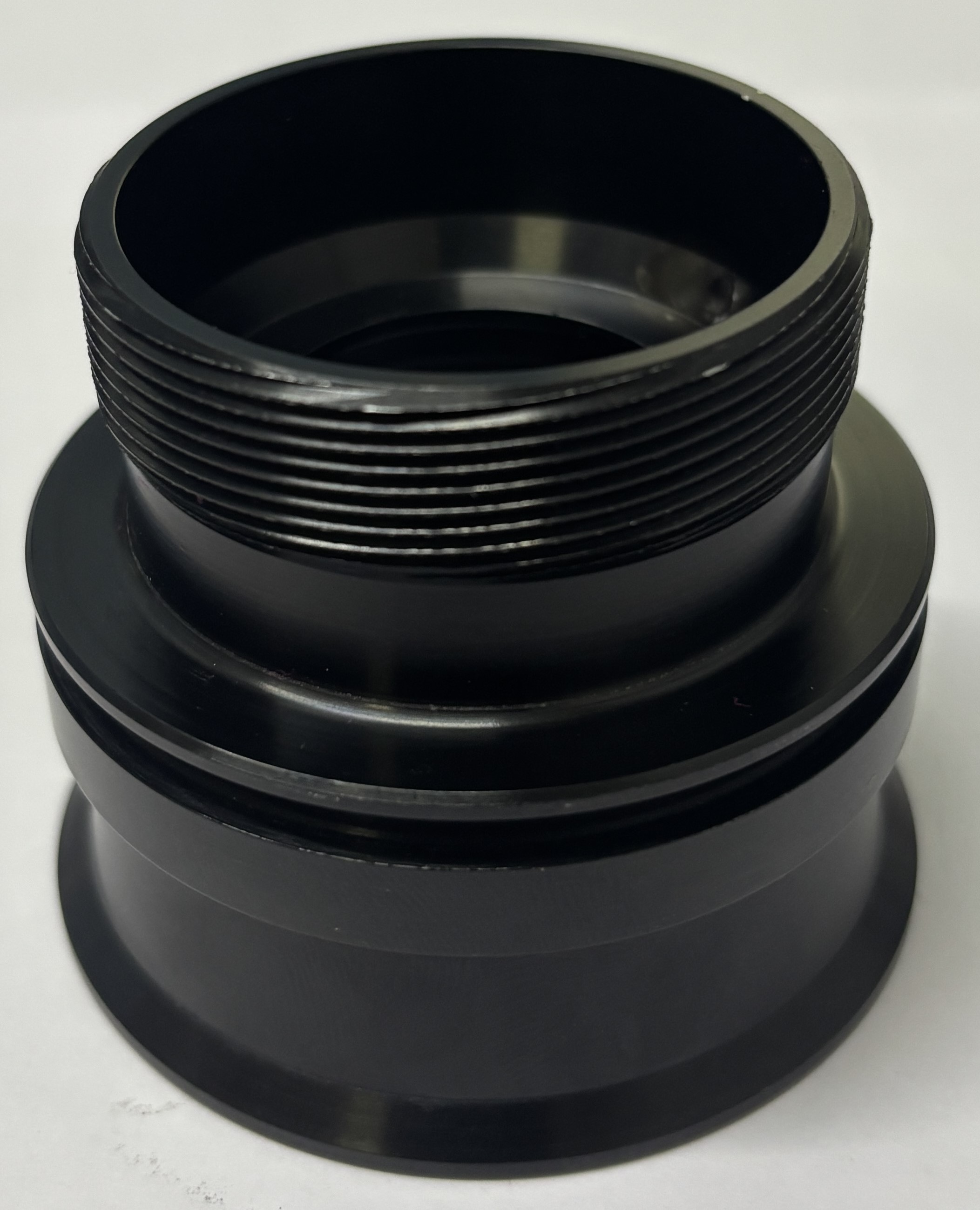

The Eyepiece Lens Cell by TECHNO CNC is a high-precision, CNC-machined optical component housing engineered to securely hold eyepiece lenses in telescopic, photographic, and imaging applications. Developed using advanced CNC turning and milling operations, this cell provides perfect concentricity, durable thread compatibility, and tight tolerances for critical optical alignments.
Manufactured in Aluminum 6061-T6, Brass, or Stainless Steel, the Eyepiece Lens Cell is corrosion-resistant and thermally stable. Its smooth anodized or matte finish ensures reduced reflectivity, making it ideal for scientific, military, or commercial optical devices. It is optimized for OEMs, telescope manufacturers, optical labs, and R&D prototyping.
| USES | Telescopes, Imaging Systems, Lab Optics, Surveillance Devices |
|---|---|
| MOQ | As per customer requirement |
| PACKAGE | Varies with diameter and wall thickness |
| AVAILABILITY | Available in Stock & Custom Machined |
| EST. SHIP | Fast Global Delivery with Secure Logistics |
| UPDATE | 08/06/2025 J |
