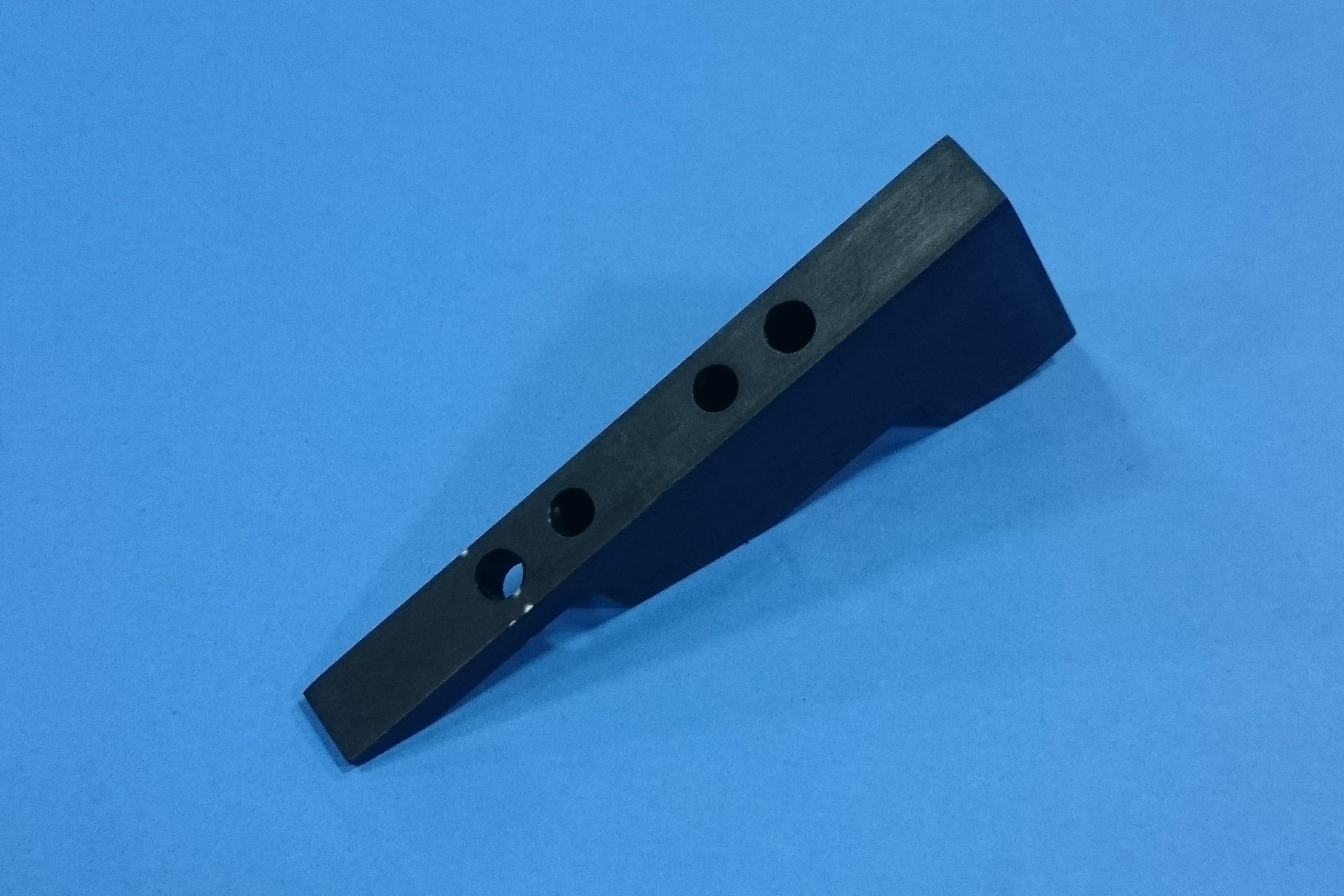

| ITEM CODE | G501._Angular Support |
|---|---|
| ITEM NAME | Upper (2 Part) Trail Fix (7 Nests) |
| DIMENSIONS | Customized as per Project Requirements |
| ITEM WEIGHT | Varies Based on Material and Size |
| MATERIAL | Aerospace Grade Aluminum / Stainless Steel |
| FINISH | Precision Machined / Anodized / Powder Coated |
| BRAND | TECHNO |
| COO | Made in BHARAT (IN) |
TECHNO CNC presents the Upper (2 Part) Trail Fix (7 Nests) — a precision-engineered dual-section fixture designed for high-efficiency component alignment, clamping, and testing in multi-station manufacturing setups. This sophisticated fixture features a two-part modular design, enabling flexible operation, simplified part placement, and reliable mechanical stability across diverse industrial applications.
Manufactured with tight-tolerance CNC machining from premium aluminum or stainless steel, it delivers exceptional accuracy, repeatability, and load-bearing performance. The seven-nest layout allows simultaneous fixture of multiple units, ideal for assembly automation, quality control inspections, and high-throughput production environments. Its durable surface finish ensures long-lasting resistance against wear, corrosion, and mechanical fatigue.
Key Features:
Two-Part Modular Fixture Design – Simplifies operation and improves component access
7-Nest Configuration – Enhances productivity through multi-unit fixture support
High-Precision CNC Machining – Guarantees accurate and repeatable positioning
Robust Industrial Materials – Ensures strength, stability, and long service life
Customizable for OEM Applications – Tailored per component geometry and process need
| USES | Multi-Part Assembly, Testing & Alignment Fixtures |
|---|---|
| MOQ | Based on Project Scope |
| PACKAGE | Tailored to Fixture Configuration |
| AVAILABILITY | In Stock / Made-to-Order |
| EST. SHIP | Fast Global Delivery with Secure Logistics |
| UPDATE | 06/04/2025 J |
