Product Specification
| ITEM CODE | CCN15-30GS60-E2 |
|---|---|
| ITEM NAME | Capacitive Sensor CCN15-30GS60-E2 |
| DIMENSIONS | M30x1.5P Length 60 mm |
| MATERIAL | Stainless Steel |
| Sensor Type | capacitance |
| BRAND | Pepperl+Fuchs |
| COO | Indonesia |
| HSN | 90318000 |
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 15 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.1 mm |
| Output type | 3-wire |
| Operating voltage | 10 ... 60 V DC |
| Switching frequency | 0 ... 10 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | d ≤ 2.8 V |
| Operating current | 0 ... 200 mA |
| Off-state current | 0 ... 0.5 mA typ. 0.1 µA at 25 °C |
| Off-state current TU =40 °C, switching element off | ≤ 100 µA |
| Sensing Distance | 15mm |
| Product Type | capacitive |
| Connector Type | Pre-wired |
| Usage/Application | non metal detection |
| Standard sensing object | water, powder |
Product Description

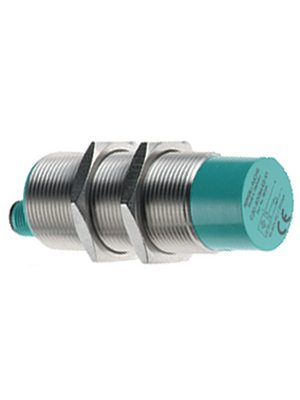

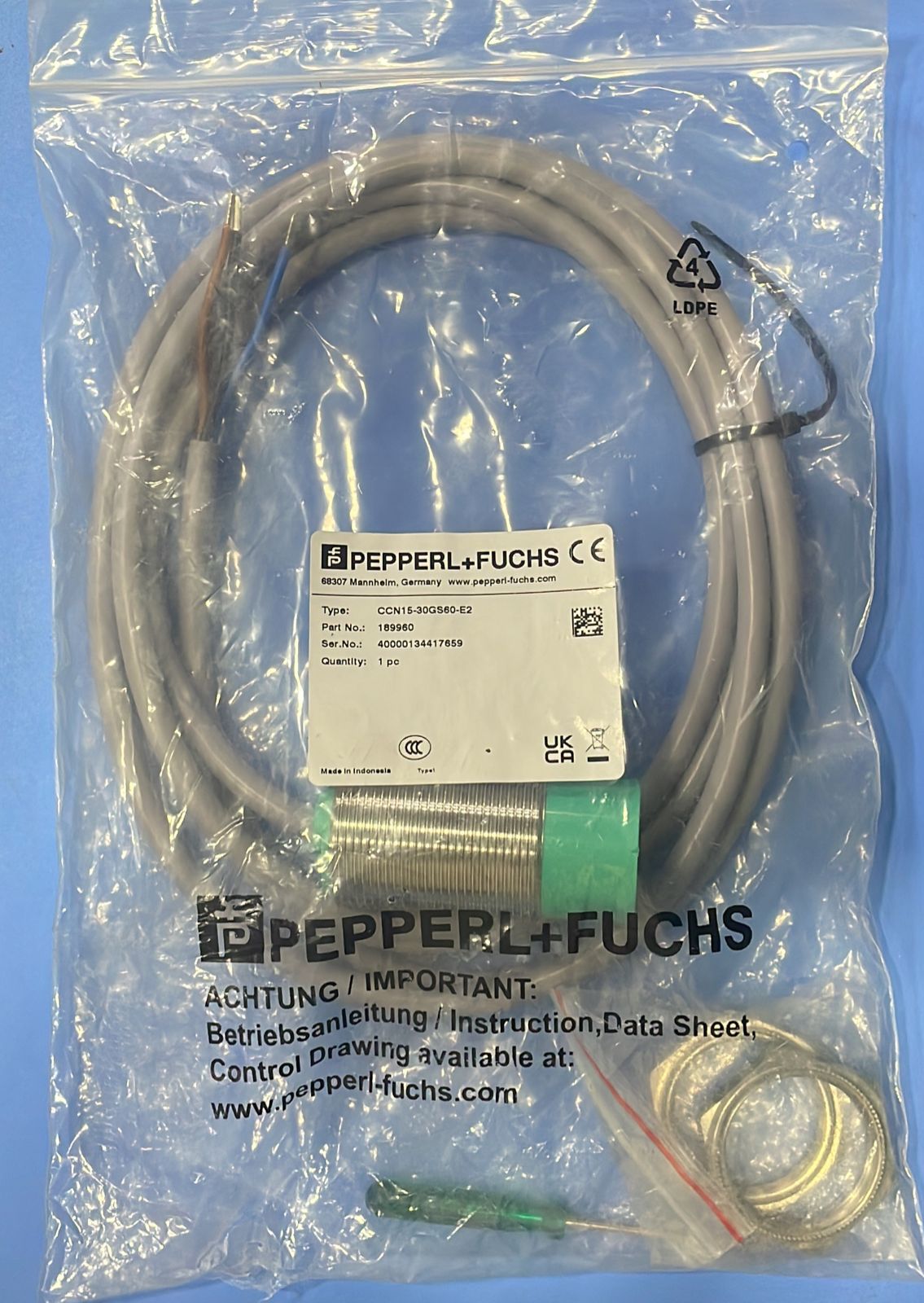

Capacitive Sensor CCN15-30GS60-E2
- 15 mm non-flush
- Operating distance adjustable via potentiometer
- High EMC resistance
- Stainless steel version
- Operating voltage range 10 V ... 60 V DC
Techno CNC are engaged in offering accurate engineered Capacitive Sensor. This Capacitive Sensor is widely used in different other industrial sectors. These are manufactured by our well trained professionals using finest quality raw material and latest machines. It can be customized according to client specifications and details. They are checked on set industrial norms before getting delivered.
Additional Information
| PACKAGE | 21x18x9 cm, Wt 0.350 kg |
|---|---|
| AVAILABILITY | Ready Stock |
